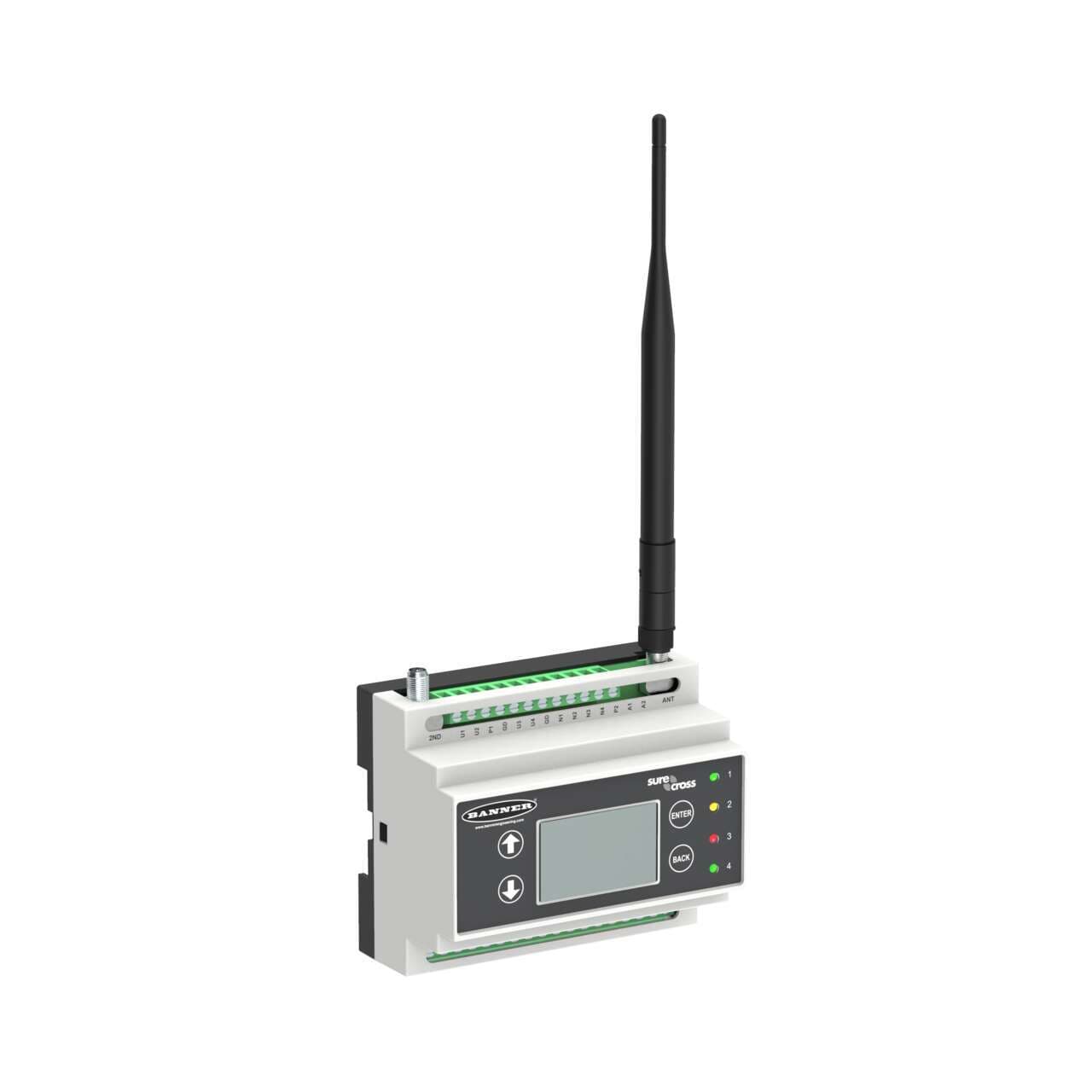

DXM1000-B1 Banner I/O Modules

DXM1000-B1 on Powermatic Associates
Banner
  • DXM1000-B1
  • DXM1000-B1

Part#:DXM1000-B1

Alt. Part#:809334

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM1000 Controller; I/O Base Board Only; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; M7 Processor, 16MB Memory, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

Product Details

  • Weight
    498.9512 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • RS-485
    Yes
  • RS-232
    Yes
  • PROFINET
    Yes
  • Modbus/TCP
    Yes
  • Modbus RTU
    Yes
  • Application: Indicator Light
    Yes
  • EtherNet/IP
    Yes
  • Dimension Length (mm)
    100
  • On-Board Memory (MB)
    16
  • Feature: Hazardous Area
    No
  • Processing Speed (MHz)
    300
  • Star Topology
    Yes
  • Tree Topology
    No
  • Max Temp Operating Conditions
    60
  • Min Temp Operating Conditions
    -20
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Environmental Rating (IP)
    IP20
  • Relative Humidity
    95%
  • Power Supply
    12-30 V dc
  • LCD Display
    Yes
  • Output Details
    4 NMOS Discrete, 2 Selectable Analog
  • Discrete Outputs
    Yes
  • Discrete Inputs
    Yes
  • Input Details
    4 Universal Inputs
  • Device Type
    Wireless Controller
  • Analog Outputs
    Yes
  • Input/Output
    Analog & Discrete
  • Analog Inputs
    Yes
  • Power
    DC
  • Housing Style
    External Terminals

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM1000-B1 on Powermatic Associates is $699.00. Order now.

About the product

Banner Engineering DXM1000-B1 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H59.5mm x W104mm x D94.6mm. It is equipped with 2 analog outputs (0-20mA / 0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be utilized as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM1000-B1 serves as a Modbus I/O controller within the DXM1000-B1 series, featuring an I/O base board only with a 300MHz processing speed for data aggregation of sensors and wireless networks, powered by an M7 processor with CAN capabilities. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector, supporting a supply voltage range of 12-30Vdc (12Vdc-24Vdc nom.). It supports multiple communication protocols including RS-485, RS-232, Modbus RTU, Modbus TCP, Ethernet/IP, and PROFINET. The memory capacity is comprised of 16MB on-board memory and an expandable 8GB via SD card.
