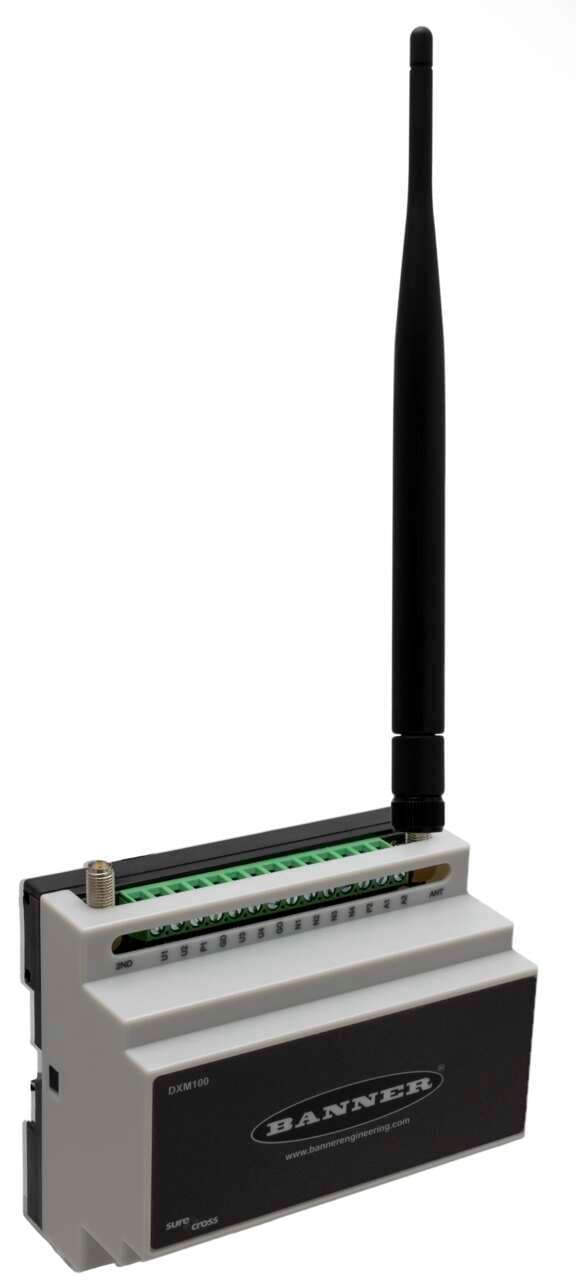

DXM100-S2R2 Banner I/O Modules

DXM100-S2R2 on Powermatic Associates
Banner
  • DXM100-S2R2
  • DXM100-S2R2

Part#:DXM100-S2R2

Alt. Part#:800837

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM100 Modbus Slave Device; Multihop Radio 900 MHz 1 W; Inputs: 4 Universal, SDI-12 Interface; Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power; RS485

Product Details

  • Weight
    385.5532 g
  • Country Of Origin
    US
  • Wireless Radio Frequency
    900 MHz
  • 1-wire Serial Interface
    No
  • Application: Object Counting
    Yes
  • Feature: Hazardous Area
    No
  • Relative Humidity
    95%
  • Application: Soil Moisture Monitoring
    Yes
  • Wireless
    Yes
  • RS-232
    Yes
  • PROFINET
    No
  • Modbus/TCP
    No
  • RS-485
    Yes
  • Modbus RTU
    Yes
  • Processing Speed (MHz)
    N/A
  • EtherNet/IP
    No
  • On-Board Memory (MB)
    N/A
  • Dimension Length (mm)
    100
  • Star Topology
    Yes
  • Point-to-Point Topology
    Yes
  • Point-to-Multipoint Topology
    Yes
  • Tree Topology
    Yes
  • Max Temp Operating Conditions
    60
  • Valve Control
    Yes
  • Max Operating Temperature ( °C)
    85
  • Min Temp Operating Conditions
    -40
  • Min Operating Temperature ( °C)
    -40
  • Input Details
    4 Universal Inputs, SDI-12 interface
  • Power Supply
    12-30 V dc
  • Environmental Rating (IP)
    IP20
  • Output Details
    4 NMOS Discrete, 2 Analog, 2 DC Latching
  • Discrete Outputs
    Yes
  • Housing Style
    External Terminals
  • Power
    DC
  • Input/Output
    Analog & Discrete
  • Analog Outputs
    Yes
  • Device Type
    Modbus Slave Device
  • Analog Inputs
    Yes
  • Discrete Inputs
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM100-S2R2 on Powermatic Associates is $599.00. Order now.

About the product

Banner Engineering DXM100-S2R2 is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers 2 analog outputs (0-10Vdc) and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also function as 4AI (4-20mA / 0-10Vdc / 10kΩ thermistor). This device is characterized by an IP20 degree of protection and has dimensions of H61.1mm x W105.3mm x D94.7mm. It utilizes a 900 MHz transmission frequency with a maximum transmission distance of 9.6km at nominal emission power, facilitated by HE5 MultiHop data radio technology for North America. The DXM100-S2 series includes SDI-12 data collection for smart valve control and employs FHSS (Frequency Hopping Spread Spectrum) technology. Connection is made through an RP-SMA connector, and it is powered by a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.). Communication is enabled via RS-485 Modbus RTU protocol, and it has an 8GB memory capacity through an SD card.
