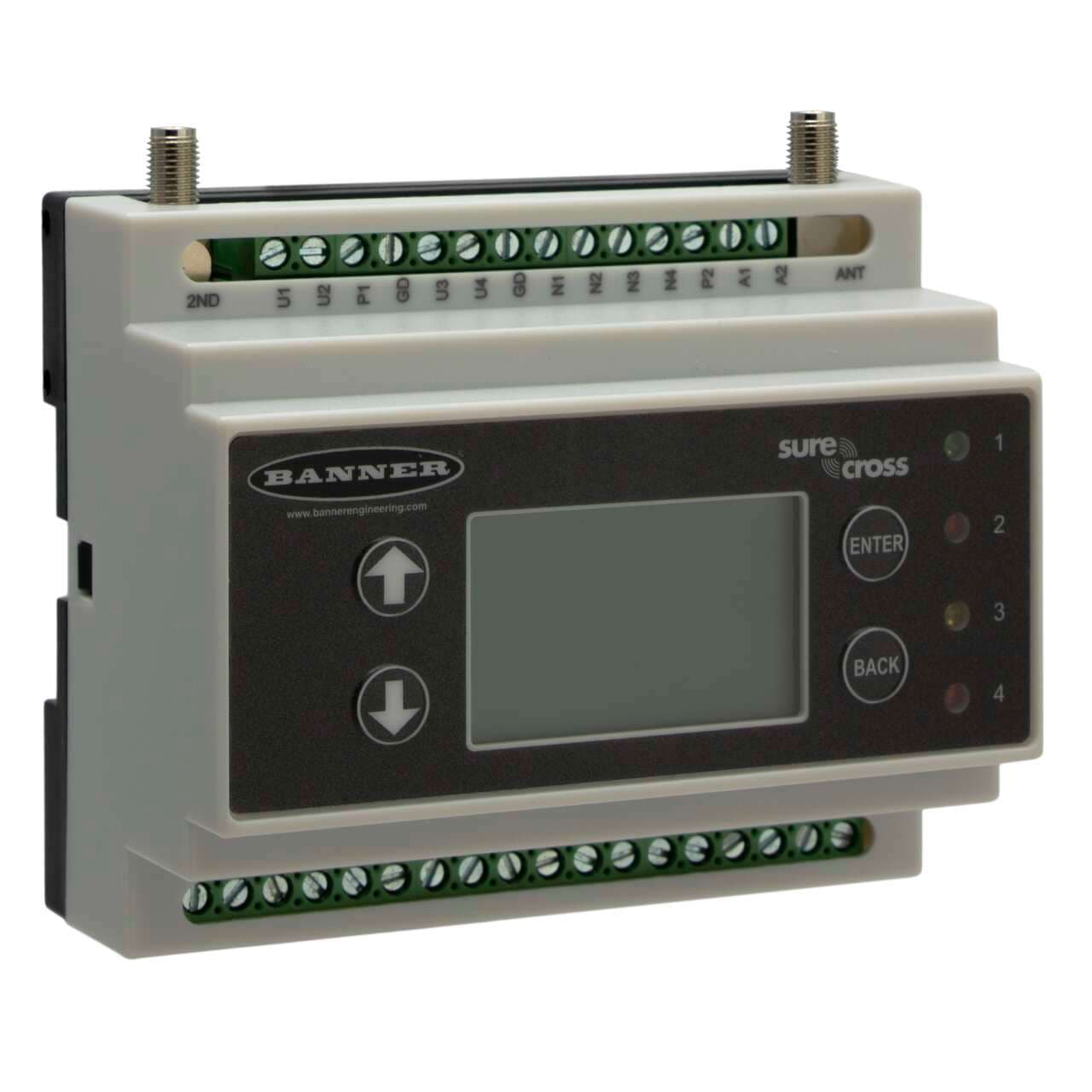

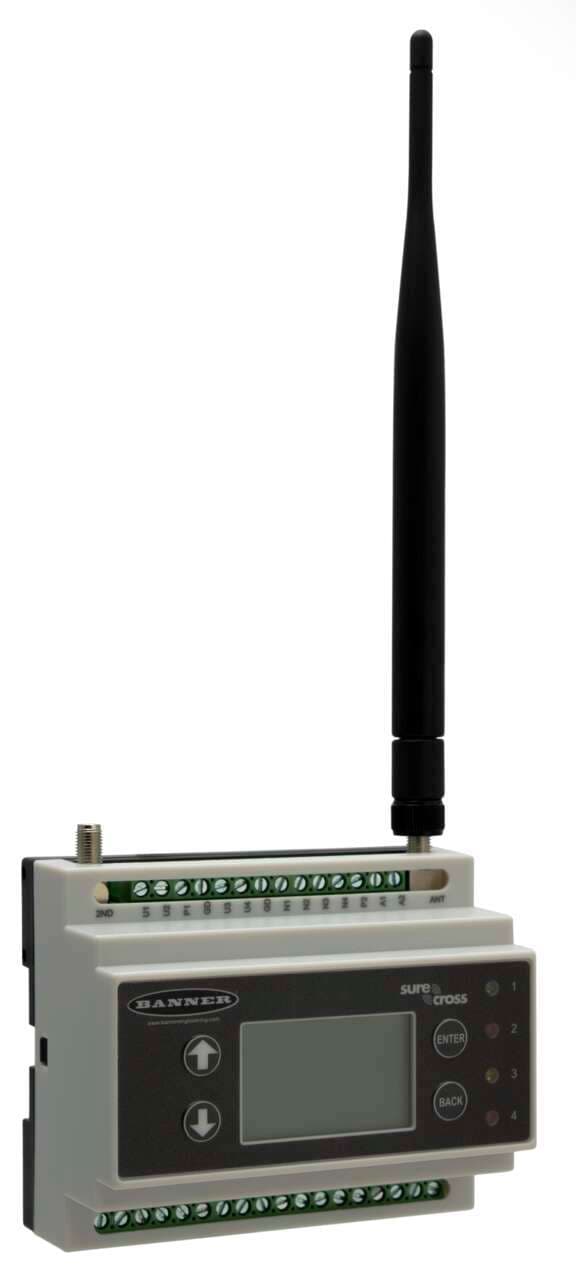

DXM100-S1R2P Banner I/O Modules

DXM100-S1R2P on Powermatic Associates
Banner
  • DXM100-S1R2P
  • DXM100-S1R2P

Part#:DXM100-S1R2P

Alt. Part#:95657

Manufacturer:Banner

Category:I/O Modules

Product Lifecycle:Active

Product description

DXM100 Modbus Slave Device; Multihop Radio 900 MHz 1 W; Inputs: 4 Universal; Outputs: 4 NMOS Discrete, 2 Selectable Analog, 2 Switched Power, 1 Courtesy Power; SAM4 processor, LCD Display; RS485, Ethernet, USB, CAN, RS232, Solar/Battery Controller

Product Details

  • Weight
    498.9512 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • RS-232
    Yes
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • Modbus/TCP
    Yes
  • RS-485
    Yes
  • Modbus RTU
    Yes
  • EtherNet/IP
    Yes
  • Processing Speed (MHz)
    100
  • PROFINET
    No
  • On-Board Memory (MB)
    N/A
  • Star Topology
    Yes
  • Feature: Hazardous Area
    No
  • Point-to-Point Topology
    Yes
  • Tree Topology
    Yes
  • Dimension Length (mm)
    100
  • Max Operating Temperature ( °C)
    85
  • Point-to-Multipoint Topology
    Yes
  • Min Operating Temperature ( °C)
    -40
  • Relative Humidity
    95%
  • Max Temp Operating Conditions
    60
  • Power Supply
    12-30 V dc
  • Min Temp Operating Conditions
    -40
  • Output Details
    4 NMOS Discrete, 2 Selectable Analog
  • Environmental Rating (IP)
    IP20
  • Input Details
    4 Universal Inputs
  • Discrete Outputs
    Yes
  • Housing Style
    External Terminals
  • Analog Inputs
    Yes
  • Analog Outputs
    Yes
  • Input/Output
    Analog & Discrete
  • Device Type
    Modbus Slave Device
  • Power
    DC
  • Discrete Inputs
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM100-S1R2P on Powermatic Associates is $999.00. Order now.

About the product

Banner Engineering DXM100-S1R2P is a remote I/O controller designed for DIN rail mounting and features a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers two analog outputs (4-20mA / 0-10Vdc), alongside four digital outputs (12Vdc-30Vdc; NMOS; 1A). This part is equipped with four digital inputs (12-30Vdc; Sink/Source/Counter) that can also function as 4AI (4-20mA / 0-10Vdc / 10kΩ thermistor). With an IP20 degree of protection and dimensions of H61.1mm x W105.3mm x D94.7mm, it utilizes FHSS (Frequency Hopping Spread Spectrum) technology for its design. The DXM100-S1R2P features an RJ45 connector for Ethernet and an RP-SMA connector, supporting a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.). It communicates via RS-485 Modbus RTU and has an 8GB memory capacity (SD card). Operating on a 900MHz ISM band 1W radio (HE5 MultiHop data radio; North America), it can achieve a maximum transmission distance of 9.6km at nominal emission power.
