DXM100-B2R2 Banner I/O Modules
Part#:DXM100-B2R2
Alt. Part#:800835
Manufacturer:Banner
Category:I/O Modules
Product Lifecycle:Active
Product description
DXM100 Controller; Multihop Radio 900 MHz 1 W; Inputs: 4 Universal, SDI-12 Interface; Outputs: 4 NMOS Discrete, 2 Analog, 2 DC Latching, 2 Switched Power, 1 Courtesy Power; SAM4 Processor, LCD Display; RS485, Ethernet, USB, Solar/Battery Controller
Product Details
- Weight 498.9512 g
- Country Of Origin US
- Application: Soil Moisture Monitoring Yes
- RS-485 Yes
- Modbus RTU Yes
- Application: Indicator Light Yes
- Point-to-Point Topology Yes
- On-Board Memory (MB) 2
- Wireless Radio Frequency 900 MHz
- 1-wire Serial Interface No
- Wireless Yes
- PROFINET No
- RS-232 No
- Modbus/TCP Yes
- EtherNet/IP Yes
- Application: Temperature Input Yes
- Application: Object Counting Yes
- Feature: Hazardous Area No
- Tree Topology Yes
- Dimension Length (mm) 100
- Star Topology Yes
- Processing Speed (MHz) 100
- Point-to-Multipoint Topology Yes
- Relative Humidity 95%
- Valve Control Yes
- Min Operating Temperature ( °C) -20
- Max Operating Temperature ( °C) 80
- LCD Display Yes
- Min Temp Operating Conditions -20
- Max Temp Operating Conditions 60
- Environmental Rating (IP) IP20
- Power Supply 12-30 V dc
- Output Details 4 NMOS Discrete, 2 Analog, 2 DC Latching
- Discrete Outputs Yes
- Input Details 4 Universal Inputs, SDI-12 interface
- Discrete Inputs Yes
- Analog Inputs Yes
- Device Type Wireless Controller with MultiHop Radio
- Analog Outputs Yes
- Housing Style External Terminals
- Input/Output Analog & Discrete
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DXM100-B2R2 on Powermatic Associates is $999.00. Order now.
About the product

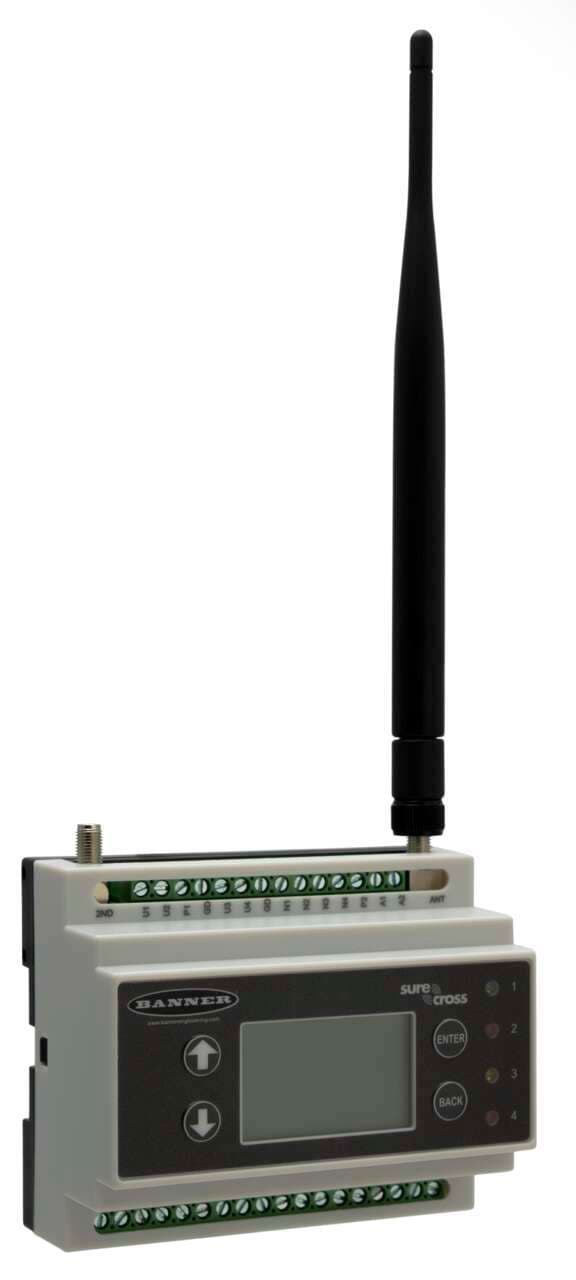

Banner Engineering DXM100-B2R2 is a remote I/O controller designed for DIN rail mounting with a polycarbonate housing. It operates within an ambient air temperature range of -20 to +60°C and offers a degree of protection rated at IP20. This controller features dimensions of H61.1mm x W105.3mm x D94.7mm. It is equipped with 2 analog outputs (0-10Vdc), 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), and 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also be used as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). The DXM100-B2R2 supports a transmission frequency of 900 MHz and includes functions such as a Modbus I/O controller with SDI-12 data collection, 100MHz processing speed for smart valve control, and FHSS (Frequency Hopping Spread Spectrum) technology with a SAM4 processor. Connection types include an RJ45 connector for Ethernet and an RP-SMA connector. It requires a supply voltage of 12-30Vdc (12Vdc-24Vdc nom.) and supports communication protocols such as RS-485 Modbus RTU, Modbus TCP, and Ethernet/IP. The memory capacity is 2MB for on-board memory and 8GB for an SD card. The frequency is set at the 900MHz ISM band with a 1W radio (HE5 MultiHop data radio; North America), capable of a maximum transmission distance of 9.6km at nominal emission power.
