Anybus by HMS Networks HMS-EN2SE-R is a gateway belonging to the Linking Device Series, designed as a protocol translator gateway for vertical installation. It features galvanic isolation on both BUS/Ethernet sides and allows for any valid IP address to be used for EtherNet/IP. TCP/IP settings are configurable via a web page, configuration tool, DHCP/ARP, or DIP switches. This model is designed with EtherNet/IP to serial conversion and includes 6 x LED indicators. It has dimensions of H120mm x W25mm x D75mm and is constructed with a plastic housing made of ABS/PC. Connection options include 2 x RJ45 connectors for 10/100Mbit/s Ethernet IP (supporting both full and half duplex), 1 x 9-pin D-sub female connector for serial RS-232/RS-422/RS-485 sub-networks, and 1 x 2-poles plug-in screw connector for power. It supports communication protocols such as Ethernet/IP, RS-232, and RS-485. The supply voltage required is 21.6-26.4Vdc (24Vdc nominal). For mounting, it offers options for DIN rail or wall mounting. The operational ambient air temperature range is 0...+55 °C, with a degree of protection rated at IP20 NEMA 1. Current consumption is 300mA (24Vdc; max.) and 100mA (24Vdc; typical). Speed capabilities are 10/100Mbit/s for Ethernet and 1.2kbit/s to 57.6kbit/s for serial baud rate. It can be stored in ambient air temperatures ranging from -40...+85 °C and can operate in 0-95% relative humidity (RH; non-condensing).

Anybus by HMS Networks AB7006-B is a gateway designed for serial communication, falling under the Serial Communicators sub-range. This device serves as a serial communicator/gateway with a configurable protocol for RS-232/422/485, supporting produce/consume or query/response ASCII communications. It can manage up to 31 stations when using RS485/422 and offers a baud rate range of 1.2-57.6kbit/s. The AB7006-B supports various Modbus commands, including reading and writing coils, registers, and more, alongside DF1 services such as integrity checks and diagnostics. It features reverse voltage protection, short circuit protection, and galvanic isolation on the sub-network, with an MTTF of over 550,000 hours. Designed for installation at altitudes up to 2000m, it meets immunity and emission standards for industrial environments, including electrostatic discharge, electromagnetic RF fields, fast transients, surge protection, and RF conducted interference. The device has a plastic housing (ABS/PC), measures H120mm x W27mm x D75mm, and includes multiple connection types such as ControlNet channel connectors, a 9-pin D-sub female connector for serial communication, and a 2-poles plug-in connector for power. It operates within an ambient air temperature range of 0 to +55°C, consumes up to 300mA (24Vdc; max.), and offers protection against reverse voltage and short circuits. The AB7006-B is designed for DIN rail mounting, has an IP20 and NEMA 1 degree of protection, and can operate in environments with up to 95% relative humidity (non-condensing).

Ewon by HMS Networks NB1023 is a gateway designed for communication, capable of being mounted on a DIN rail or wall. It operates within an ambient air temperature range of -40 to +65°C and features a 4G cellular modem for cellular 3G or Ethernet connectivity to the Netbiter Argos IIoT platform. The design includes an LED indicator, SNMP support, and offers a variety of connection types: 2 x RJ45 connectors for 10/100Mbit/s Ethernet (1 x WAN + 1 x LAN), 1 x SMA female connector for an antenna, 2 x 3-pin connectors for serial connections up to 115.2kbit/s (1 x RS-232 + 1 x RS-485), and 1 x USB micro B connector. As part of the Netbiter EC300 series, it measures H27mm x W135mm x D92mm and requires a supply voltage of 9-32Vdc (12Vdc / 24Vdc nom.). The housing is made of metal, and it supports multiple communication protocols including Ethernet, GPRS, GSM, Modbus, Modbus RTU, Modbus TCP, RS-232, and RS-485. Power consumption is 2.5 W at 24Vdc. It is designed for storage in ambient air temperatures of -45 to +85°C. The device includes 1 x digital output (relay NO contact; 24Vac/1A max. / 24Vdc/1A max.), 4 x analog inputs (2 x 0-10Vdc / 0-20mA / Pt100 16-bit for AI1 and AI3; 2 x 0-10Vdc / 0-20mA for AI2 and AI4), and 2 x digital inputs (dry contact type), with Ethernet speeds of 10/100Mbit/s.

Ewon by HMS Networks E-025 is a cable designed as an extension LMR195 cable/cordset within the Accessories sub-range, specifically for GSM antenna applications. It features 2 x SMA connectors and has a length of 10m / 33ft.

Anybus by HMS Networks AWB2030-B is a Wireless LAN (WLAN) unit from the Wireless Bolt Ethernet PoE series designed to enable wireless configuration and troubleshooting of machinery. This unit allows for a connection range of up to 100 meters, facilitating access to internal web pages via laptops, tablets, or smartphones without the need for physical proximity to the machine. It supports WLAN standards 802.11 a/b/g/n/d across 2.4GHz and 5GHz bands with an RF output power of 18dBm EIRP, and can operate in Access Point or Client mode, supporting up to 7 slaves with a net data throughput of 20Mbps and a link speed of up to 65Mbps. The AWB2030-B also features Bluetooth and Bluetooth Low Energy interfaces, supporting various profiles and encryption standards, with a maximum of 7 simultaneous connections and data throughputs of approximately 1Mbps and 200kbps, respectively. Additionally, it includes an Ethernet interface that supports multiple protocols and wireless bridging of Industrial Ethernet protocols. The unit is housed in a black, plastic (PBT/PC) casing with IP66/IP67 protection, designed for M50 screw/nut mounting, and operates within a supply voltage range of 19-36Vdc. It features a 10/100BASE-T Ethernet connection with PoE capability and a 3-poles plug-in screw connector for power, supporting ambient operating temperatures from -40 to +65°C and storage temperatures from -40 to +85°C.

4g NA Ext. Card (ATT, Tmobile, Bell, etc

Ewon by HMS Networks Flexy20100_00MA is a gateway belonging to the Flexy 200 series, designed for industrial remote data collection and routing. It features routing capabilities between LAN and WAN, including Ethernet interface and Ethernet to serial gateway functionalities. This modular gateway supports a variety of Ethernet to Serial Gateways protocols such as MODBUS TCP to MODBUS RTU, XIP to UNITELWAY, EtherNet/IP to DF1, and more, applicable to the series 200. It is capable of data acquisition through protocols like OPC UA, MODBUS/RTU, and several others, storing up to 2500 internal tags. Data publishing is supported via OPC UA, Modbus, MQTT, among others. The device offers alarm notifications through email, SMS, FTP put, or SNMP traps, with four threshold levels plus deadband and activation delay. It features an internal database for real-time and historical data logging, with capacity for up to 1,000,000 timestamps, and options for data export. The Flexy20100_00MA includes an SD card reader for commissioning and extended user memory, and supports VPN tunnelling with end-to-end encryption for secure remote access. Programmability is provided through a script interpreter for Basic language and a Java 2 Standard Edition environment. It also includes file management capabilities, an embedded web interface for configuration and maintenance, and up to 30MB of user flash disk space for applications. The design includes an LED indicator, with dimensions of H80mm x W134mm x D89mm, and offers 4 x RJ45 LAN connectors and 2 x SD card connectors for connectivity. It supports various communication protocols including BACnet/IP, Ethernet, Modbus, and PROFIBUS. The supply voltage ranges from 9.6-28.8Vdc, with DIN rail mounting as the mounting mode. It operates within an ambient air temperature range of -25 to +60 °C, includes 2 x digital inputs and 1 x digital output with isolation, and is designed to work in environments with 10-95% relative humidity, non-condensing.

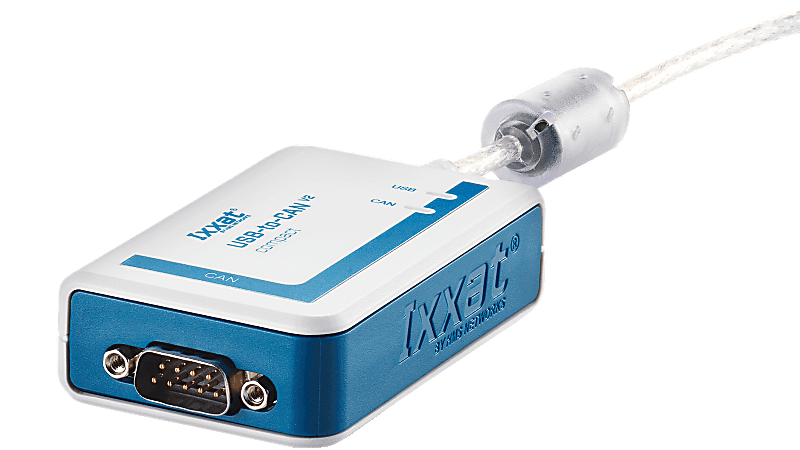

Ixxat by HMS Networks 1.01.0283.22002 is a gateway featuring an active USB-to-CAN V2 interface. It operates with a USB 2.0 Hi-Speed PC bus interface and is powered by a 32bit microcontroller. The internal CAN controller supports CAN 2.0 A/B with baud rates ranging from 10kBit/s to 1Mbit/s. It includes a high-speed CAN transceiver (TI SN65HVD251D), a low-speed CAN transceiver (TJA1055T), and a LIN transceiver (TJA1020) that supports LIN protocol versions 1.3 and 2.0 with a maximum LIN baud rate of 20kBaud. The device offers galvanic isolation of 1000Vdc for 1s or 500Vac for 1min and is powered by a 5V (max. 300mA) supply via USB port. Fieldbus connection complies with CiA 303-1 standards. It features 2 x RJ45 connectors for CAN, 1 x USB 2.0 Hi-speed connector, and is equipped with 3 x LED indicators. The device operates within a temperature range of -20 to +70°C and offers a degree of protection rated at IP40. Its housing is made of ABS plastic, measuring 80mm in height, 50mm in width, and 22mm in depth, and it is designed for surface mounting in environments with 10-95% relative humidity, non-condensing.

Anybus by HMS Networks 024701-B is a spare part designed as a DIN clip kit that includes screws for installation. This component is specifically crafted to facilitate secure mounting and easy integration within various automation systems, ensuring compatibility and straightforward application for maintenance or system upgrades.
