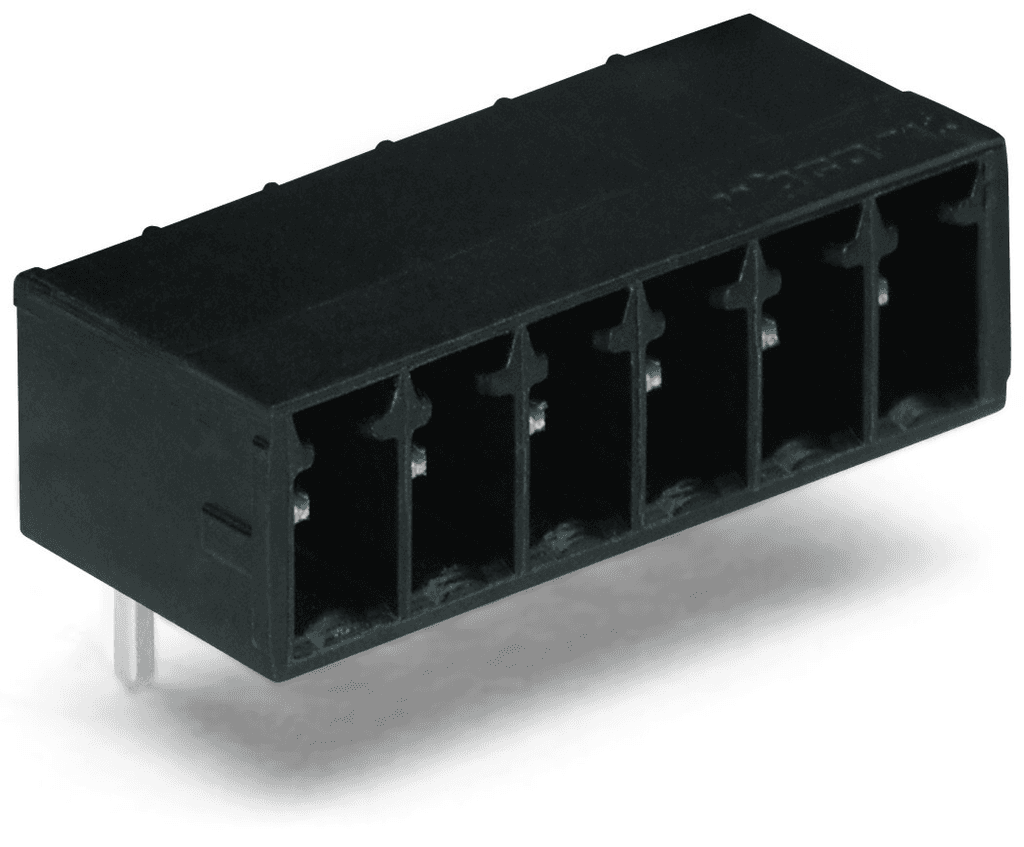

714-164 WAGO Industrial Automation Components

WAGO 714-164 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal and rated voltages of 160V in overvoltage category III/3 and pollution degree 3, and 320V in category II/2, both with a rated impulse voltage of 2.5kV and a rated current of 8A. UL 1059 approvals are present, with a rated voltage of 150V and rated current of 8A for UL Use Group B. This connector features four potentials, one connection type, and a single level, with a pole number of four for connection 1. Physical specifications include a pin spacing of 3.5mm, dimensions of 15.4mm in width, 10.3mm in height, 6.9mm height from the surface, and 9.7mm in depth, with solder pin length of 3.4mm and dimensions of 0.8 x 0.8mm. It offers variable coding, anti-rotation protection, and is designed as a male connector/plug for PCB with THT PCB contact and in-line solder pin arrangement. The connector is black, made from Polyphthalamide (PPA GF) with a flammability class of UL94 V0, and electrolytic copper contacts plated with tin. It has a fire load of 0.017MJ and weighs 0.9g. It operates within a temperature range of -60 to +100°C and can be processed between -35 to +60°C. Packaged in boxes of 200 pieces, it is RoHS compliant without exemptions, has a GTIN of 4045454859169, and is manufactured in Germany with a customs tariff number of 85366930000.
