RU50L-S18-AN8X-H1141 Turck Ultrasonic Sensors
Part#:RU50L-S18-AN8X-H1141
Manufacturer:Turck
Alt. Part#:100002168
Product Lifecycle:Active
Get a quick Quote!
RU50L-S18-AN8X-H1141 Ultrasonic Sensor, Retroreflective Sensor
About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RU50L-S18-AN8X-H1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 37 g
- Special features Compact
- Housing quality LCP
- Ambient temperature -20…+50 °C
- Housing surface Yellow
- Housing material Plastic
- Protection class IP67

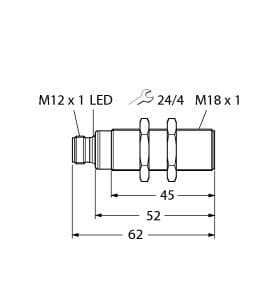

- Construction size M18 x 1
- Output function NPN
- Switching element function NO contact
- Operating voltage 15…30 VDC
- Electrical connection Connector, M12 × 1
- Design Threaded barrel
- Radiation direction straight
- Range 50…500 mm
- Function Retroreflective
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RU50L-S18-AN8X-H1141 Description
Turck RU50L-S18-AN8X-H1141 is an ultrasonic sensor from the RU50L series designed with a 20° sonic cone in retro-reflective mode for front sensing. This sensor features TEACH-by-wire functionality and is constructed with a Liquid Crystal Polymer (LCP) housing and a sensing face made of PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy. It comes pre-equipped with a 4-pin M12 Eurofast QD male connector for connectivity. The sensor operates on a supply voltage of 15-30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -20°C to +50°C. It is rated with an IP67 degree of protection, indicating its robustness against dust and water ingress. The RU50L-S18-AN8X-H1141 has a partially threaded barrel shape with an M18 thread size, and it offers a digital output (20-30Vdc; NPN; 150mA max.). Its sensing distance ranges from 50-500mm, with a no-load current consumption of 50mA. The sensor's maximum switching frequency is 9.6Hz, and it includes protection functions against short-circuit (pulsed) and reverse polarity. It operates in a Normally Open (NO) mode and boasts a measurement accuracy (resolution) of 0.2mm.
