RU50U-S18-LI8X-H1141 Turck Ultrasonic Sensors
Part#:RU50U-S18-LI8X-H1141
Manufacturer:Turck
Alt. Part#:100000748
Product Lifecycle:Active
Get a quick Quote!
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 500 mm, Smooth sonic transducer face, Cylindrical housing S18, potted, Connection via M12 × 1 male connector, Temperature compensation, Blind zone: 5 cm, Range: 50 cm, Aperture angle of sonic cone: ±20 °, Analog output, 4…20 mA, Adjustable measuring range
About the manufacturer: Turck is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RU50U-S18-LI8X-H1141 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 40 g
- Housing surface Yellow
- Housing material Plastic
- Housing quality LCP
- Current output 4…20 mA
- Ambient temperature -20…+50 °C
- Protection class IP67
- Special features Compact
- Operating voltage 15…30 VDC
- Electrical connection Connector, M12 × 1

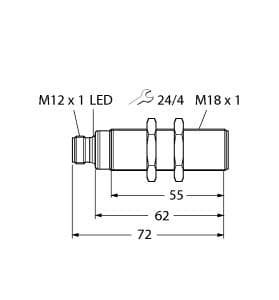

- Construction size M18 x 1
- Output function Analog output
- Range 50…500 mm
- Radiation direction straight
- Design Threaded barrel
- Function Proximity
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RU50U-S18-LI8X-H1141 Description
Turck RU50U-S18-LI8X-H1141 is an ultrasonic sensor from the RU50U series, designed with a 20° sonic cone diffuse mode for front sensing. It features ultrasonic sensor TEACH-by-wire functionality and is constructed with an LCP (Liquid Crystal Polymer) housing and a sensing face made from PET (Polyethylene terephthalate), PU (Polyurethane), and Epoxy. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for connection and operates on a supply voltage of 15-30Vdc, with 24Vdc nominal. It is designed to function within an ambient air temperature range of -20°C to +50°C and offers a degree of protection rated at IP67. The sensor's shape is an M18 partially threaded barrel, and it includes 1 digital output (15-30Vdc; PNP; fixed threshold) and 1 analog output (4-20mA), with a sensing distance ranging from 50-500mm. The current consumption is 50mA under no-load conditions. It features protection functions against short-circuit (pulsed) and reverse polarity, with a measurement accuracy (resolution) of 0.2mm and a thread size of M18.
