RS 4.6T-0.5 Turck Cordsets

Name: RS 4.6T-0.5
Brand: Turck
Price: 46.6 USD
Availability: InStock

Part#:RS 4.6T-0.5

Manufacturer:Turck

Alt. Part#:U-47910

Product Lifecycle:Active

In-stock parts: 1

Nov 16, 2024

RS 4.6T-0.5 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RS 4.6T-0.5 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
32 g
RoHS
Yes
Country Of Origin
MEX
HTS Code
8544429090
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Cable length (L)
0.50 m
Cable Jacket Color
Gray
Cable Jacket Material
PVC
Current
4 A
Material coupling/housing A
Brass
Number of Conductors
6
Voltage
250 V
Connector A - Style
Straight, Male
Connector A - Number of Pins
6
Application
Actuator and Sensor
Connector A
M12 × 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RS 4.6T-0.5 Description

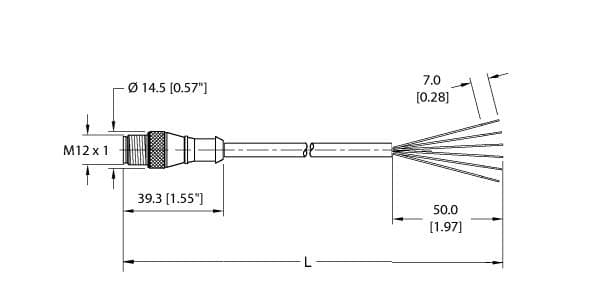

Turck RS 4.6T-0.5 is a single-ended mating cable/cordset designed for automation applications, featuring a 6-pin M12 eurofast male connector with T-barb fitting to bare end flying leads. This cable is constructed with a nickel-plated brass coupling nut and a PVC jacket, ensuring durability and longevity. The cable sheath has an outer diameter of 5.1mm and a length of 50cm (19 inches). It is designed to operate with a rated current of 4A and has a cross-section of 6 x #24AWG. The RS 4.6T-0.5 is encased in a gray sheath and offers a degree of protection rated at IP68, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it suitable for a wide range of environmental conditions.
