EKRT-A4.400-GC2K-2 Turck Cordsets

Turck EKRT-A4.400-GC2K-2 EKRT-A4.400-GC2K-2 Actuator and Sensor Cordset, Connection Cable
Turck

Part#:EKRT-A4.400-GC2K-2

Manufacturer:Turck

Alt. Part#:UX19103

Product Lifecycle:Active

In-stock parts: 5

Sep 28, 2024

EKRT-A4.400-GC2K-2 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the EKRT-A4.400-GC2K-2 Turck price in the box on the right side or send a quick quote.

Product Details

  • Approvals
    UL 2238, CSA C22.2 No. 182.3, CE, RoHS
  • Cable length (L)
    2.0  m
  • Special Features
    Torque sleeve
  • Material coupling/housing A
    Brass
  • Cable Jacket Color
    Black
  • Current
    4 A
  • Cable Jacket Material
    PVC
  • Number of Conductors
    4
  • Connector A - Style
    Straight, Female
  • Connector A - Number of Pins
    4
  • Connector A
    M12 × 1
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

EKRT-A4.400-GC2K-2 Description

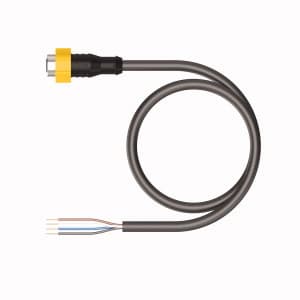

Turck EKRT-A4.400-GC2K-2 is a single-ended mating cable/cordset designed for automation applications, featuring a 4-pin M12 eurofast female connector with a torque sleeve and bare end flying leads. This part falls under the M12 eurofast to bare leads sub-range and is constructed with a nickel-plated brass coupling nut and a PVC jacket. It has a length of 2 meters (approximately 6 feet) and is rated for a current of 4A. The cable has a black sheath and a cross-section of 4 x #22AWG.

Related documents EKRT-A4.400-GC2K-2 Specs

EKRT-A4.400-GC2K-2 English.pdf

This item can ship within 24h!

Manufacturer warranty

$21.00

Stock:

5

Select Qty:

$21.00

$21.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
