RI40P1-QR20-LI2X2 Turck Industrial Automation Components

RI40P1-QR20-LI2X2 on Powermatic Associates
Turck
  • RI40P1-QR20-LI2X2
  • RI40P1-QR20-LI2X2

Part#:RI40P1-QR20-LI2X2

Alt. Part#:100004575

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

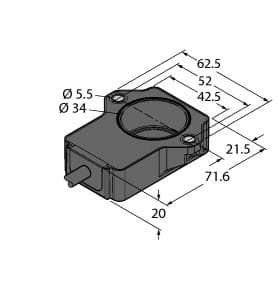

RI40P1-QR20-LI2X2 Turck - RI40P1-QR20-LI2X2 Miniature Encoder, With Analog Output, Premium Line

Product Details

  • Weight
    160 g
  • Country Of Origin
    DEU
  • HTS Code
    9032894000
  • Ambient Temperature
    -40 degrees celsius, 70 degrees celsius
  • Country of Origin
    Germany
  • Operating Voltage
    15 volts, 30 volts
  • Weight
    160 grams
  • Ambient temperature
    -25…+70 °C
  • Protection class
    IP68/IP69K
  • Cable length (L)
    2.0  m
  • Current output
    4…20 mA
  • Housing material
    Plastic, Ultem
  • Electrical connection
    Cable
  • Output function
    Analog output
  • Construction size
    71.6 x 62.6 x 20 mm
  • Flange type
    Flange without mounting element
  • Shaft diameter D [mm]
    6  mm6.35  mm
  • Operating voltage
    15…30 VDC
  • Measuring range
    -20…20°
  • Shaft Type
    Blind hole shaft
  • Output type
    Absolute singleturn
  • Technology
    Contactless
  • Encoder line
    Premium-Line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI40P1-QR20-LI2X2 on Powermatic Associates is $165.70. Order now.

About the product

Miniature Encoder, With Analog Output, Premium Line, Cable length (L) 2 m, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, High protection class IP68/IP69K, Protection against salt spray, Measuring range displayed via LED, Immune to electromagnetic interference, 0.09° resolution, 3‐wire, 15…30 VDC, Analog output 4…20 mA, Output 22 mA (typ.) where there is no RLC coupling, Cable length 2m
