RI40P2-QR20-LU4X2 Turck Encoders
Part#:RI40P2-QR20-LU4X2
Manufacturer:Turck
Alt. Part#:100001831
Product Lifecycle:Active
Get a quick Quote!

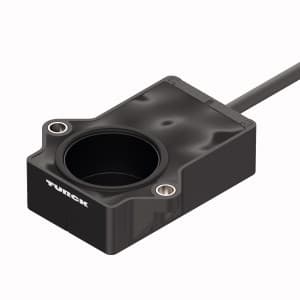

RI40P2-QR20-LU4X2 Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI40P2-QR20-LU4X2 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 1000 g
- Protection class IP68/IP69K
- Ambient temperature -40…+85 °C
- Housing material Plastic, Ultem
- Cable length (L) 2.0 m
- Electrical connection Cable
- Output function Analog output
- Shaft diameter D [mm] 6 mm6.35 mm
- Encoder line Premium-Line
- Voltage output 0.5…4.5 V
- Measuring range -20…20°
- Flange type Flange without mounting element
- Operating voltage 8…30 VDC

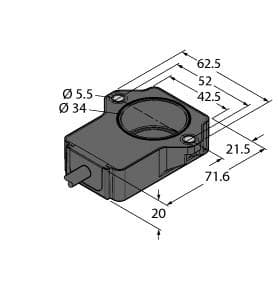

- Construction size 71.6 x 62.6 x 20 mm
- Output type Absolute singleturn
- Shaft Type Blind hole shaft
- Technology Contactless
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI40P2-QR20-LU4X2 Description
Turck RI40P2-QR20-LU4X2 is a contactless rotary inductive angle sensor designed for precise measurement with a resolution of ≤0.09° and a 12-bit resolution. It operates within an ambient air temperature range of -25...+85 °C and is housed in a plastic Ultem casing, ensuring durability with dimensions of H63mm x W72mm x D20mm. This sensor is part of the Q-track QR20 series and features a blind hole shaft design that is washdown-resistant, making it suitable for harsh environments with a degree of protection rated at IP68 and IP69K. It is equipped with a pre-wired 2m / 6.5ft cable with bare end flying leads for connectivity and operates on a supply voltage of 8Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. The sensor has a rectangular shape, a 1/4" bore size, and offers protection functions against short-circuit and reverse polarity. It provides one analog output (0.5Vdc-4.5Vdc), has a maximum current consumption of 100mA, and features a green LED for visual position indication and power status. The sensor's angular measurement range is 0°... +40°, and it has a sampling rate of 800Hz.
Related documents RI40P2-QR20-LU4X2 Specs
