Encoders - Turck

Accessories, Protecting Ring, For Encoders RI-QR24, Outer diameter: 74mm, Material: Aluminium

Accessories, Shield Plate, For Encoders RI-QR24, Positioning element, Hollow shaft, internal diameter 6 mm, Incl. mounting option for shaft adapter

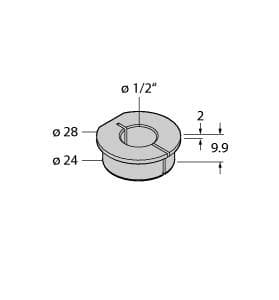

Accessories, Adapter Sleeve, For Encoders RI-QR24, Reduction Unit 1/2, "

Accessories, Positioning Element, For Encoders RI-QR24, Positioning element, for Ø 12 mm shafts

Contactless Encoder, Incremental: 1 … 5000 ppr, Premium Line, Resolution, incremental 1024 ppr, Compact, rugged housing, Many mounting possibilities, Status displayed via LED, Immune to electromagnetic interference, 1024 pulses per revolution (default), 360, 512, 1000, 1024, 2048, 2500, 3600, 4096, parametr. via Easy-Teach, Free parametrization of the pulse number in the range from 1 to 5000 via PACT, ware, ™, Position of z-track set via Easy-Teach, Burst function, absolute angular position outp

Accessories, Positioning Element, For Encoders RI-QR24, Positioning element, for Ø 5/8” shafts

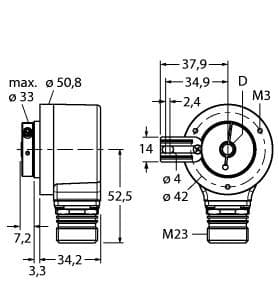

Incremental Encoder, Industrial Line, Resolution, incremental 2500 ppr, Flange with torque stop, Ø 50.8 mm, Hollow shaft, Ø 12 mm, Optical measuring principle, Shaft material: stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5…30 VDC, Male connector, M12 x 1, 8-pole, Push-pull, with inverted signals, Pulse frequency max. 300 kHz, 2500 pulses per revolution

Turck RI360P0-QR24M0-INCRX2-H1181/4096 is a contactless rotary inductive angle sensor designed for precise angle measurement. It operates within an ambient air temperature range of -25 to +85°C and features incremental parametrization through a hollow shaft, making it suitable for washdown-resistant applications. This sensor is equipped with an 8-pin M12 Eurofast QD male connector for easy installation. As part of the Q-track QR24 series, it has dimensions of H78mm x W81mm x D24mm and offers a high degree of protection with IP68 and IP69K ratings. The supply voltage requirement is 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. Its rectangular shape is constructed from ZnAlCu1 metal and a PA12-GF30 plastic housing. The sensor features a 1kHz sampling rate, a digital push-pull incremental output, and includes protection functions against short-circuit, wire-break, and reverse polarity. It offers a resolution of 4096ppr, which can be adjusted up to 5000ppr, and includes a green LED for power indication and a yellow LED for measuring range display. The measurement accuracy is ≤ 0.01% of full scale, with a current consumption of 100mA, and it can measure angular positions from 0° to +360°.

Accessories, Positioning Element, For Encoders RI-QR24, Base unit for positioning element

Contactless Encoder, SSI, Premium Line, Compact, rugged housing, Many mounting possibilities, Status displayed via LED, Positioning element and aluminium ring not incl., , SSI output, 25 bit, Gray-coded, SSI clock rate: 62.5 KHz … 1 MHz, Single or multiturn, length of data frame and bit coding parametrizable via PACT, ware, with programming box USB-2-IOL-0002 and adapter cable RKC8.302T-1,5-RSC4T/TX320, Default settings: Singleturn Bit 0 … Bit 15, Multiturn Bit 16 … Bit 21, Status Bit 22 … Bit 2
