RI90P1-QR20-LU4X2-0.24-AMP01-3P Turck Encoders

RI90P1-QR20-LU4X2-0.24-AMP01-3P on Powermatic Associates
Turck

Part#:RI90P1-QR20-LU4X2-0.24-AMP01-3P

Manufacturer:Turck

Alt. Part#:100000198

Product Lifecycle:Active

Get a quick Quote!

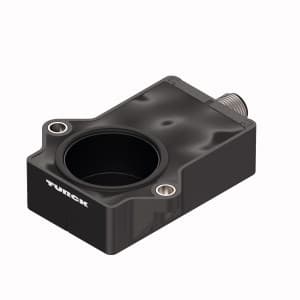

RI90P1-QR20-LU4X2-0.24-AMP01-3P Miniature Encoder, With Analog Output, Premium Line

About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RI90P1-QR20-LU4X2-0.24-AMP01-3P Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    122 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Output function
    Analog output
  • Protection class
    IP68/IP69K
  • Voltage output
    0.5…4.5 V
  • Electrical connection
    Cable with connector, AMP Superseal
  • Cable length (L)
    0.240  m
  • Housing material
    Plastic, Ultem
  • Ambient temperature
    -40…+85 °C
  • Measuring range
    -45…45°
  • Flange type
    Flange without mounting element
  • Operating voltage
    8…30 VDC

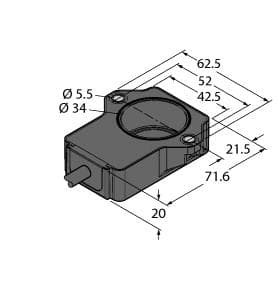

  • Construction size
    71.6 x 62.6 x 20 mm
  • Shaft diameter D [mm]
    6  mm6.35  mm
  • Encoder line
    Premium-Line
  • Shaft Type
    Blind hole shaft
  • Output type
    Absolute singleturn
  • Technology
    Contactless

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RI90P1-QR20-LU4X2-0.24-AMP01-3P Description

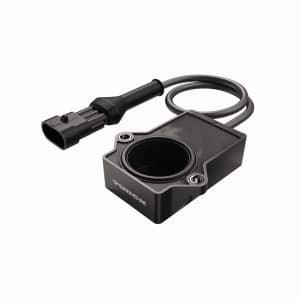

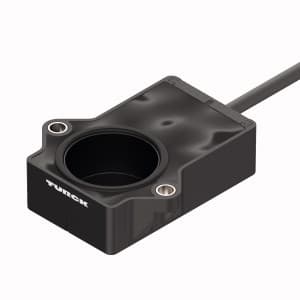

Turck RI90P1-QR20-LU4X2-0.24-AMP01-3P is a contactless rotary inductive angle sensor designed for precise angular position detection within a range of 0° to +90°. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft design that is resistant to washdown environments. This sensor is part of the Q-track QR20 series and comes pre-wired with a 24cm pigtail terminated with a 3-pin connector for easy installation. It has dimensions of H63mm x W72mm x D20mm and offers a high degree of protection with ratings of IP68 and IP69K, making it suitable for harsh conditions. The sensor operates on a supply voltage of 8Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is housed in a durable plastic Ultem casing. It features a 6mm bore size and is equipped with protection functions against short-circuit and reverse polarity. The sensor provides an analog output of 0.5Vdc to 4.5Vdc and boasts a high resolution of ≤0.09° with a 12-bit resolution. It includes a green LED for visual position indication and power status, and has a maximum current consumption of 100mA. The sensor's design is rectangular, and it offers a sampling rate of 800Hz, ensuring accurate and rapid measurement feedback.

Related documents RI90P1-QR20-LU4X2-0.24-AMP01-3P Specs

RI90P1-QR20-LU4X2-0.24-AMP01-3P English-1630965982304.pdf
