RI90P2-QR20-LU4X2-0.24-AMP01-3P Turck Encoders
Part#:RI90P2-QR20-LU4X2-0.24-AMP01-3P
Manufacturer:Turck
Alt. Part#:100001841
Product Lifecycle:Active
Get a quick Quote!
RI90P2-QR20-LU4X2-0.24-AMP01-3P Miniature Encoder, With Analog Output, Premium Line
About the manufacturer: Turck is one of the manufacturers that offers Encoders that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the RI90P2-QR20-LU4X2-0.24-AMP01-3P Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 121 g
- Protection class IP68/IP69K
- Housing material Plastic, Ultem
- Cable length (L) 0.240 m
- Output function Analog output
- Electrical connection Cable with connector, AMP Superseal
- Operating voltage 8…30 VDC
- Output type Absolute singleturn
- Measuring range -45…45°
- Shaft diameter D [mm] 6 mm6.35 mm
- Technology Contactless

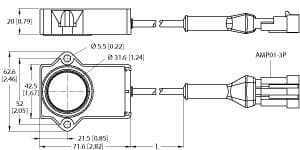

- Construction size 71.6 x 62.6 x 20 mm
- Shaft Type Blind hole shaft
- Ambient temperature -40…+85 °C
- Flange type Flange without mounting element
- Voltage output 0.5…4.5 V
- Encoder line Premium-Line
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RI90P2-QR20-LU4X2-0.24-AMP01-3P Description

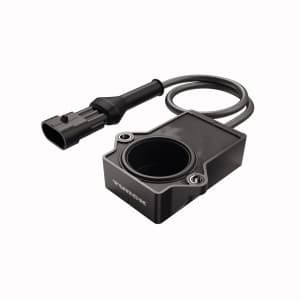

Turck RI90P2-QR20-LU4X2-0.24-AMP01-3P is a contactless rotary inductive angle sensor designed for measuring angular positions between 0° and +90°. It operates within an ambient air temperature range of -25 to +85°C and features a blind hole shaft design that is resistant to washdowns. This sensor is part of the Q-track QR20 series and comes pre-wired with a 24cm pigtail terminated with a 3-pin connector for easy installation. It has dimensions of H63mm x W72mm x D20mm and offers a degree of protection rated at IP68 and IP69K, making it suitable for harsh environments. The supply voltage requirement is between 8Vdc and 30Vdc, with a nominal range of 12Vdc to 24Vdc. Its rectangular shape is constructed from a plastic Ultem housing, and it features a 1/4" bore size. The sensor provides protection against short-circuits and reverse polarity, and it has one analog output ranging from 0.5Vdc to 4.5Vdc. With a resolution of ≤0.09° or 12-bit resolution and a sampling rate of 800Hz, it ensures precise measurements. The sensor also includes a green LED for visual position indication and power status, and it has a maximum current consumption of 100mA.
Related documents RI90P2-QR20-LU4X2-0.24-AMP01-3P Specs
