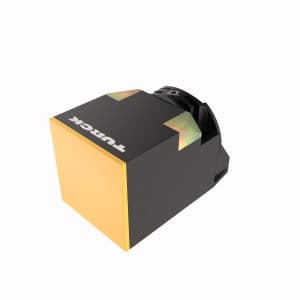

BI30U-CK40-AP6X2-H1141 Turck Inductive Sensors

Name: BI30U-CK40-AP6X2-H1141
Brand: Turck
Price: 172.1 USD
Availability: InStock

Turck BI30U-CK40-AP6X2-H1141 BI30U-CK40-AP6X2-H1141 Inductive Sensor, With Extended Switching Distance

Part#:BI30U-CK40-AP6X2-H1141

Manufacturer:Turck

Alt. Part#:1625829

Product Lifecycle:Active

In-stock parts: 160

Nov 16, 2024

BI30U-CK40-AP6X2-H1141 Inductive Sensor, With Extended Switching Distance

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI30U-CK40-AP6X2-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
116 g
Country Of Origin
DEU
HTS Code
8536507000
Protection class
IP68
Ambient temperature
-10…+60 °C
Housing material
Plastic, PBT-GF20-V0, Black
Special features
uprox+, Factor 1, Resistant to magnetic fields
Operating voltage
10…30 VDC
Mounting
Flush
Construction size
65 x 40 x 40 mm, CK40
Design
Rectangular
Electrical connection
Connector, M12 × 1
Rated switching distance
30 mm
Output function
NO contact, PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

BI30U-CK40-AP6X2-H1141 Description

Turck BI30U-CK40-AP6X2-H1141 is an inductive proximity sensor belonging to the BI...-CK40 series, designed for embeddable applications. It operates with a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc, and features a housing made of PBT-GF20-V0, a glass fiber reinforced Polybutylene Terephthalate, with a sensing face of PA12-GF30, a glass fiber reinforced Polyamide. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for connectivity, and it has a short rectangular body measuring H40mm x W40mm, known as the Stubby shape. It offers a degree of protection rated at IP68, making it suitable for harsh environments. The sensor can switch at frequencies up to 250Hz and operates within an ambient air temperature range of -10°C to +60°C. It has a response time of 8ms or 0.008 seconds and includes 1 digital output (10-30Vdc; PNP; 200mA max.). The current consumption is 15mA under no-load conditions, and it has a sensing distance of 30mm. Protection features include short-circuit (pulsed), overload, and reverse polarity protection. The control circuit is rated for a current of 200mA / 0.2 A, and the operating mode is NO (Normally Open).
