BI30R-Q20-AP6X2-H1141 Turck Inductive Sensors

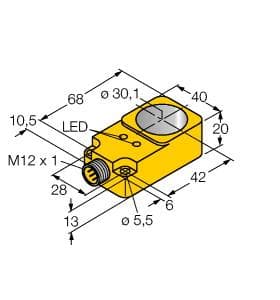

Turck BI30R-Q20-AP6X2-H1141 is an inductive proximity sensor belonging to the BI...-Q20 series, designed for embeddable installation. It operates on a supply voltage of 10-30Vdc, with nominal values of 12Vdc and 24Vdc, and features a PBT-GF30-V0 (glass fiber reinforced Polybutylene Terephthalate) housing and sensing face for durability. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for connectivity and has a 20mm thick rectangular body with a 30mm ring. It offers IP65 protection against dust and water ingress, and can operate within an ambient air temperature range of -25°C to +70°C. The sensor has a maximum switching frequency of 8Hz, a response time of 8ms, and includes one digital output (10-30Vdc; PNP; 200mA max.) with a no-load current consumption of 15mA. Its sensing distance is 30mm, and it is protected against short-circuit (pulsed), overload, and reverse polarity. The control circuit is rated at 200mA, and it operates in a Normally Open (NO) mode, capable of detecting objects sized between 6-30mm.
