PKG 3Z-0.5 Turck Industrial Automation Components

PKG 3Z-0.5 on Powermatic Associates
Turck

Part#:PKG 3Z-0.5

Manufacturer:Turck

Alt. Part#:U2134-58

Product Lifecycle:Active

In-stock parts: 79

Nov 16, 2024

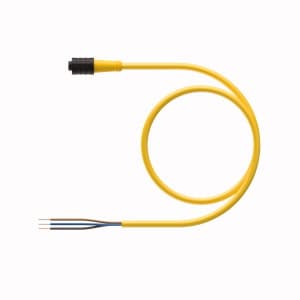

PKG 3Z-0.5 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 3Z-0.5 Turck price in the box on the right side or send a quick quote.

Product Details

  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8544429090
  • Cable length (L)
    0.50  m
  • Approvals
    UL Listed, CSA, CE, RoHS
  • Current
    4 A
  • Cable Jacket Color
    Yellow
  • Cable Jacket Material
    PVC
  • Connector A
    Ø 8 mm
  • Connector A - Style
    Straight, Female
  • Connector A - Number of Pins
    3
  • Voltage
    125 V
  • Application
    Actuator and Sensor
  • Number of Conductors
    3

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 3Z-0.5 Description

Turck PKG 3Z-0.5 is a single-ended mating cable/cordset designed with a foil shield and drain wire, featuring a 4.2mm cable sheath outer diameter. It is equipped with a 3-pin M8 picofast female connector with female snap-lock and bare end flying leads. This part falls under the M8 picofast to bare leads sub-range and measures 0.5m or 50cm in length. It offers a rated current of 4A and is protected to IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P standards. The cable is constructed with a nickel-plated brass coupling nut, POM locking sleeve, and a TPU jacket. It comes in a color scheme featuring gray moulded plugs and a black sheath. The cable supports a rated voltage of 125Vac and is a 3-wire configuration with a cross-section of 3 x #24AWG.

Related documents PKG 3Z-0.5 Specs

PKG 3Z-0.5 edb_U2134-58_eng_us.pdf

This item can ship within 24h!

Manufacturer warranty

$15.80

Stock:

79

Select Qty:

$15.80

$15.80 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
