PKG 3M-1.5 Turck Cordsets

Name: PKG 3M-1.5
Brand: Turck
Price: 15.8 USD
Availability: InStock

Turck PKG 3M-1.5 PKG 3M-1.5 Actuator and Sensor Cordset, Connection Cable

Part#:PKG 3M-1.5

Manufacturer:Turck

Alt. Part#:U0872-05

Product Lifecycle:Active

In-stock parts: 56

Sep 28, 2024

PKG 3M-1.5 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PKG 3M-1.5 Turck price in the box on the right side or send a quick quote.

Product Details

Cable length (L)
1.50 m
Approvals
UL Listed, CSA, CE, RoHS
Cable Jacket Color
Yellow
Cable Jacket Material
PVC
Voltage
125 V
Current
4 A
Material coupling/housing A
Brass
Connector A - Style
Straight, Female
Connector A - Number of Pins
3
Connector A
M8 × 1
Number of Conductors
3
Application
Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PKG 3M-1.5 Description

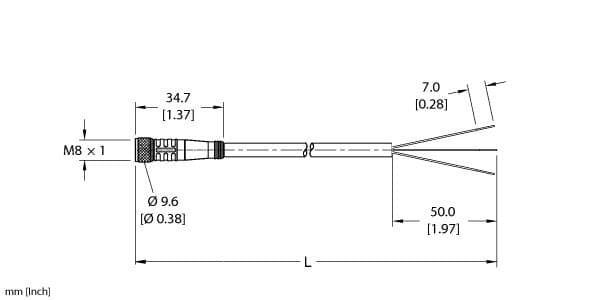

Turck PKG 3M-1.5 is a single-ended mating cable/cordset designed for various automation applications. It features a 4.2mm cable sheath outer diameter and is equipped with a 3-pin M8 picofast female connector with an M8x1 threaded coupling nut and bare end flying leads. This part falls under the M8 picofast to bare leads sub-range and has a length of 1.5 meters. It is rated for a current of 4A and a voltage of 125Vac. The PKG 3M-1.5 is constructed with a nickel-plated brass coupling nut and a TPU jacket, ensuring durability. It offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, making it suitable for a wide range of environmental conditions. The cable is black, has a 3-wire configuration with a cross-section of 3 x #24AWG, and is designed to facilitate reliable connections in automation systems.

$15.80

Stock:

Select Qty:

$15.80

$15.80 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us
