LS-534-1000-LIU24PN8X-H1181 Turck Industrial Automation Components

LS-534-1000-LIU24PN8X-H1181 on Powermatic Associates
Turck
  • LS-534-1000-LIU24PN8X-H1181
  • LS-534-1000-LIU24PN8X-H1181

Part#:LS-534-1000-LIU24PN8X-H1181

Alt. Part#:100015808

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

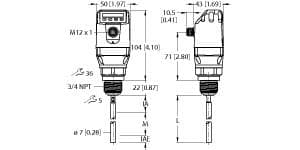

LS-534-1000-LIU24PN8X-H1181 Turck - LS-534-1000-LIU24PN8X-H1181 Level Sensor, With Analog Output and 4 × Switching Outputs

Product Details

  • Weight
    1000 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    9026102040
  • Weight
    1000 grams
  • Country of Origin
    Germany
  • Operating Voltage
    12 volts, 30 volts
  • Ambient Temperature
    -20 degrees celsius, 60 degrees celsius
  • Protection class
    IP67
  • Ambient temperature
    -20…+60 °C
  • Housing material
    Plastic, PBT
  • Pressure resistance
    -1…10 bar
  • Medium temperature
    -20…+100 °C
  • Electrical connection
    Connector, M12 × 1
  • Materials (contact with media)
    Stainless steel 1.4404 (AISI 316L), PTFE, FKM
  • Communication protocol
    IO-Link
  • Process connection
    3/4” NPT male thread
  • Medium
    liquids
  • Probe length (L)
    1000  mm
  • Output function
    NO/NC, PNP/NPN, analog output
  • Operating voltage
    12…30 VDC
  • Detection type
    medium contact
  • Voltage output
    0…10 V
  • Current output
    4…20 mA
  • Measuring principle
    Guided microwave

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS-534-1000-LIU24PN8X-H1181 on Powermatic Associates is $706.80. Order now.

About the product

Level Sensor, With Analog Output and 4 × Switching Outputs, , Multiple output signals: one system for both level detection and continuous level monitoring, Low maintenance and quick commissioning without calibration, High flexibility due to cutable probe, Compact, rotatable display housing ensures easy installation, Small inactive areas, ideal for small containers, Process temperature to 212 °F, Process pressure up to 145 psi, Coaxial tubes available for non-metallic tanks, IO-Link 1.1, , 12…30 VDC, 1x analog output 4… 20 mA/0… 10 V (automatic switchover depending on load), 1x transistor output (PNP) or IO-Link, 3x transistor output (PNP/NPN switchable), Process connection NPT 3/4 male thread, Probe length 1000 mm, "

LS-534-1000-LIU24PN8X-H1181 Related Documents

English-1630966540930.pdf
