LS-534-0000-LIU22PN8X-H1151 Turck Level Sensors

LS-534-0000-LIU22PN8X-H1151 on Powermatic Associates
Turck
  • LS-534-0000-LIU22PN8X-H1151
  • LS-534-0000-LIU22PN8X-H1151

Part#:LS-534-0000-LIU22PN8X-H1151

Alt. Part#:100001845

Manufacturer:Turck

Category:Level Sensors

Product Lifecycle:Active

Product description

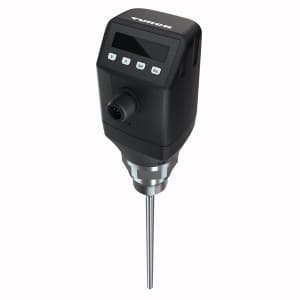

LS-534-0000-LIU22PN8X-H1151 Turck - LS-534-0000-LIU22PN8X-H1151 Level Sensor, With Analog Output and 2 × Switching Outputs

Product Details

  • Weight
    557 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Weight
    557 grams
  • Operating Voltage
    12 volts, 30 volts
  • Country of Origin
    Germany
  • Ambient Temperature
    -20 degrees celsius, 60 degrees celsius
  • Protection class
    IP67
  • Electrical connection
    Connector, M12 × 1
  • Ambient temperature
    -20…+60 °C
  • Materials (contact with media)
    Stainless steel 1.4404 (AISI 316L), PTFE, FKM
  • Pressure resistance
    -1…10 bar
  • Housing material
    Plastic, PBT
  • Output function
    NO/NC, PNP/NPN, analog output
  • Medium
    liquids
  • Process connection
    3/4” NPT male thread
  • Communication protocol
    IO-Link
  • Current output
    4…20 mA
  • Voltage output
    0…10 V
  • Operating voltage
    12…30 VDC
  • Measuring principle
    Guided microwave
  • Detection type
    medium contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS-534-0000-LIU22PN8X-H1151 on Powermatic Associates is $706.80. Order now.

About the product

Level Sensor, With Analog Output and 2 × Switching Outputs, , Multiple output signals: one system for both level detection and continuous level monitoring, Low maintenance and quick commissioning without calibration, High flexibility due to cutable probe, Compact, rotatable display housing ensures easy installation, Small inactive areas, ideal for small containers, Process temperature to 212 °F, Process pressure up to 145 psi, Coaxial tubes available for non-metallic tanks, IO-Link 1.1, , 12…30 VDC, 1 × analog output 4… 20 mA/0… 10 V (automatic switchover depending on load), 2 × PNP/IO-Link or PNP/NPN transistor outputs, each switchable
