LS-551-0000-LIU24PN8X-H1181 Turck Industrial Automation Components
Part#:LS-551-0000-LIU24PN8X-H1181
Manufacturer:Turck
Category:Industrial Automation Components
Alt. Part#:100001846
Product Lifecycle:Active
In-stock parts: 1
Feb 22, 2025

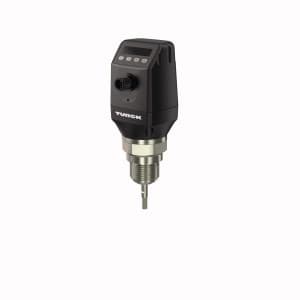

LS-551-0000-LIU24PN8X-H1181 Turck - LS-551-0000-LIU24PN8X-H1181 Level Sensor, With Analog Output and 4 × Switching Outputs
About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the LS-551-0000-LIU24PN8X-H1181 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 588 g
- RoHS Yes
- Country Of Origin DEU
- HTS Code 8536507000
- Weight 588 grams
- Operating Voltage 12 volts, 30 volts
- Country of Origin Germany
- Ambient Temperature -20 degrees celsius, 60 degrees celsius
- Housing material Plastic, PBT
- Materials (contact with media) Stainless steel 1.4404 (AISI 316L), PTFE, FKM
- Protection class IP67
- Pressure resistance -1…10 bar
- Ambient temperature -20…+60 °C
- Electrical connection Connector, M12 × 1
- Process connection G 3/4'' male thread
- Detection type medium contact
- Medium liquids
- Output function NO/NC, PNP/NPN, analog output
- Measuring principle Guided microwave
- Operating voltage 12…30 VDC
- Communication protocol IO-Link
- Voltage output 0…10 V
- Current output 4…20 mA
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
LS-551-0000-LIU24PN8X-H1181 Description
Level Sensor, With Analog Output and 4 × Switching Outputs, , Multiple output signals: one system for both level detection and continuous level monitoring, Low maintenance and quick commissioning without calibration, High flexibility due to cutable probe, Compact, rotatable display housing ensures easy installation, Small inactive areas, ideal for small containers, Process temperature to 212 °F, Process pressure up to 145 psi, Coaxial tubes available for non-metallic tanks, IO-Link 1.1, , 12…30 VDC, 1x analog output 4… 20 mA/0… 10 V (automatic switchover depending on load), 1x transistor output (PNP) or IO-Link, 3x transistor output (PNP/NPN switchable)
Related documents LS-551-0000-LIU24PN8X-H1181 Specs
This item can ship in 3-5 days!
Manufacturer warranty
$706.80
Stock:
1
Select Qty:
$706.80
$706.80 each
