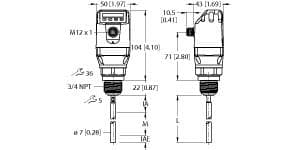

LS-534-1000-LIU22PN8X-H1151 Turck Level Sensors
Part#:LS-534-1000-LIU22PN8X-H1151
Manufacturer:Turck
Alt. Part#:100015809
Product Lifecycle:Active
Get a quick Quote!
LS-534-1000-LIU22PN8X-H1151 Level Sensor, With Analog Output and 2 × Switching Outputs
About the manufacturer: Turck is one of the manufacturers that offers Level Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.
Check out the LS-534-1000-LIU22PN8X-H1151 Turck price in the box on the right side or send a quick quote.
Product Details
- Weight 1310 g
- Protection class IP67
- Electrical connection Connector, M12 × 1
- Pressure resistance -1…10 bar
- Housing material Plastic, PBT
- Communication protocol IO-Link
- Ambient temperature -20…+60 °C
- Materials (contact with media) Stainless steel 1.4404 (AISI 316L), PTFE, FKM
- Medium temperature -20…+100 °C
- Voltage output 0…10 V
- Medium liquids
- Probe length (L) 1000 mm
- Current output 4…20 mA
- Operating voltage 12…30 VDC
- Process connection 3/4” NPT male thread
- Measuring principle Guided microwave
- Detection type medium contact
- Output function NO/NC, PNP/NPN, analog output
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
LS-534-1000-LIU22PN8X-H1151 Description
Turck LS-534-1000-LIU22PN8X-H1151 is a sensor designed for liquid level measurement within the LS-5 series. This instrumentation level sensor/switch features a cylindrical shape with a housing made of PBT (Polybutylene Terephthalate) and wetted parts constructed from 1.4404 (316L) stainless steel. It offers a measurement span of 1000mm and is pre-equipped with a 5-pin M12 Eurofast QD male connector alongside a 3/4" NPT threaded male process connection. The sensor operates within a pressure range of -1 to +10 bar (-14.5psi to +145psi) and requires a supply voltage of 12-30Vdc, with 24Vdc nominal. It is designed to function in ambient air temperatures ranging from -20°C to +60°C and is protected to a degree of IP67. The sensor provides 1 x analog output (4-20mA / 0-10Vdc; can also be used as a NPN/PNP digital output) and has a response time of 400ms / 0.004 s.
Related documents LS-534-1000-LIU22PN8X-H1151 Specs
