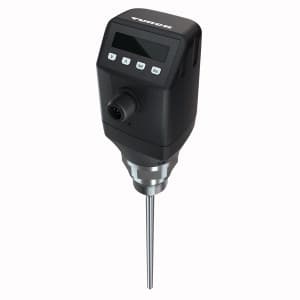

LS-534-0200-LIU22PN8X-H1151 Turck Level Sensors

Name: LS-534-0200-LIU22PN8X-H1151
Brand: Turck

Turck LS-534-0200-LIU22PN8X-H1151 LS-534-0200-LIU22PN8X-H1151 Level Sensor, With Analog Output and 2 × Switching Outputs

Part#:LS-534-0200-LIU22PN8X-H1151

Manufacturer:Turck

Alt. Part#:100001849

Product Lifecycle:Active

Get a quick Quote!

LS-534-0200-LIU22PN8X-H1151 Level Sensor, With Analog Output and 2 × Switching Outputs

About the manufacturer: Turck is one of the manufacturers that offers Level Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the LS-534-0200-LIU22PN8X-H1151 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
661 g
Materials (contact with media)
Stainless steel 1.4404 (AISI 316L), PTFE, FKM
Housing material
Plastic, PBT
Pressure resistance
-1…10 bar
Protection class
IP67
Electrical connection
Connector, M12 × 1
Communication protocol
IO-Link
Medium temperature
-20…+100 °C
Ambient temperature
-20…+60 °C
Output function
NO/NC, PNP/NPN, analog output
Current output
4…20 mA
Operating voltage
12…30 VDC
Probe length (L)
200 mm
Voltage output
0…10 V
Detection type
medium contact
Measuring principle
Guided microwave
Process connection
3/4” NPT male thread
Medium
liquids

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LS-534-0200-LIU22PN8X-H1151 Description

Turck LS-534-0200-LIU22PN8X-H1151 is a sensor designed for liquid level measurement within the LS-5 series. This instrumentation level sensor/switch features a cylindrical shape with a housing made of PBT (Polybutylene Terephthalate) and wetted parts constructed from 1.4404 (316L) stainless steel. It has a 200mm measurement span and is pre-equipped with a 5-pin M12 Eurofast QD male connector and a 3/4" NPT threaded male process connection. The sensor operates within a pressure range of -1 to +10 bar (-14.5psi to +145psi) and requires a supply voltage of 12-30Vdc, with 24Vdc nominal. It is designed to function in ambient air temperatures ranging from -20°C to +60°C and offers a degree of protection rated at IP67. The sensor provides 1 x analog output (4-20mA / 0-10Vdc; can also be used as a NPN/PNP digital output) and has a response time of 400ms / 0.004 s.
