LS-551-0200-LIU22PN8X-H1151 Turck Industrial Automation Components

Name: LS-551-0200-LIU22PN8X-H1151
Brand: Turck
Price: 706.8 USD
Availability: BackOrder

LS-551-0200-LIU22PN8X-H1151 on Powermatic Associates

Part#:LS-551-0200-LIU22PN8X-H1151

Manufacturer:Turck

Category:Industrial Automation Components

Alt. Part#:100001848

Product Lifecycle:Active

Get a quick Quote!

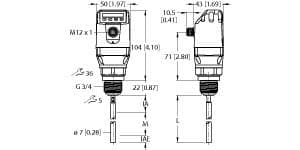

LS-551-0200-LIU22PN8X-H1151 Turck - LS-551-0200-LIU22PN8X-H1151 Level Sensor, With Analog Output and 2 × Switching Outputs

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the LS-551-0200-LIU22PN8X-H1151 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
662 g
RoHS
Yes
Country Of Origin
DEU
HTS Code
8536507000
Weight
662 grams
Operating Voltage
12 volts, 30 volts
Ambient Temperature
-20 degrees celsius, 60 degrees celsius
Country of Origin
Germany
Ambient temperature
-20…+60 °C
Communication protocol
IO-Link
Pressure resistance
-1…10 bar
Protection class
IP67
Housing material
Plastic, PBT
Medium temperature
-20…+100 °C
Electrical connection
Connector, M12 × 1
Materials (contact with media)
Stainless steel 1.4404 (AISI 316L), PTFE, FKM
Voltage output
0…10 V
Operating voltage
12…30 VDC
Current output
4…20 mA
Output function
NO/NC, PNP/NPN, analog output

Probe length (L)

200 mm

Process connection

G 3/4'' male thread

Measuring principle

Guided microwave

Medium

liquids

Detection type

medium contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LS-551-0200-LIU22PN8X-H1151 Description

Level Sensor, With Analog Output and 2 × Switching Outputs, , Multiple output signals: one system for both level detection and continuous level monitoring, Low maintenance and quick commissioning without calibration, High flexibility due to cutable probe, Compact, rotatable display housing ensures easy installation, Small inactive areas, ideal for small containers, Process temperature to 212 °F, Process pressure up to 145 psi, Coaxial tubes available for non-metallic tanks, IO-Link 1.1, , 12…30 VDC, 1 × analog output 4… 20 mA/0… 10 V (automatic switchover depending on load), 2 × PNP/IO-Link or PNP/NPN transistor outputs, each switchable, Process connection G3/4 male thread, Probe length 200 mm, "
