LS-551-0500-LIU24PN8X-H1181 Turck Level Sensors

Name: LS-551-0500-LIU24PN8X-H1181
Brand: Turck

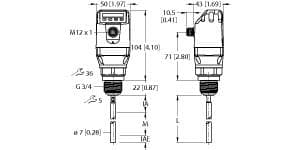

Turck LS-551-0500-LIU24PN8X-H1181 LS-551-0500-LIU24PN8X-H1181 Level Sensor, With Analog Output and 4 × Switching Outputs

Part#:LS-551-0500-LIU24PN8X-H1181

Manufacturer:Turck

Alt. Part#:100001862

Product Lifecycle:Active

Get a quick Quote!

LS-551-0500-LIU24PN8X-H1181 Level Sensor, With Analog Output and 4 × Switching Outputs

About the manufacturer: Turck is one of the manufacturers that offers Level Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the LS-551-0500-LIU24PN8X-H1181 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
891 g
Ambient temperature
-20…+60 °C
Protection class
IP67
Medium temperature
-20…+100 °C
Housing material
Plastic, PBT
Electrical connection
Connector, M12 × 1
Materials (contact with media)
Stainless steel 1.4404 (AISI 316L), PTFE, FKM
Communication protocol
IO-Link
Pressure resistance
-1…10 bar
Probe length (L)
500 mm
Measuring principle
Guided microwave
Current output
4…20 mA
Process connection
G 3/4'' male thread
Medium
liquids
Detection type
medium contact
Voltage output
0…10 V
Output function
NO/NC, PNP/NPN, analog output
Operating voltage
12…30 VDC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LS-551-0500-LIU24PN8X-H1181 Description

Turck LS-551-0500-LIU24PN8X-H1181 is a sensor designed for liquid level measurement within the LS-5 series. This instrumentation level sensor/switch features a cylindrical shape with a housing made of PBT (Polybutylene Terephthalate) and wetted parts constructed from 1.4404 (316L) stainless steel. It has a measurement span of 500mm and is pre-equipped with an 8-pin M12 Eurofast QD male connector alongside a G3/4" threaded male process connection. The sensor operates within a pressure range of -1 to +10 bar (-14.5psi to +145psi) and requires a supply voltage of 12-30Vdc, with 24Vdc nominal. It is designed to function in ambient air temperatures ranging from -20°C to +60°C. The LS-551-0500-LIU24PN8X-H1181 offers an IP67 degree of protection and includes 1 x analog output (4-20mA / 0-10Vdc; can be used as a NPN/PNP digital output) and 3 x digital outputs (NPN / PNP), with a response time of 400ms / 0.004 s.
