106FXE2-SC-15 Red Lion Industrial Automation Components

106FXE2-SC-15 on Powermatic Associates
Red Lion

Part#:106FXE2-SC-15

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

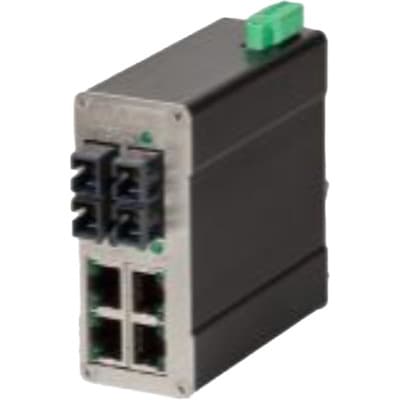

Red Lion 106FXE2-SC-15 is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for single-mode fibers, capable of transmitting data over a distance of up to 15km. The switch is designed to function within an ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s. Encased in a metallic body for durability, it adheres to an IP30 rating for protection against objects and ensures secure mounting with DIN rail technology. The 106FXE2-SC-15, part of the N-Tron 100 series, is identified by the UNSPSC code as a 6-port Ethernet switch.

Product Details

  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Degree of protection
    IP30
  • Equivalent to
    106FXE2SC15
  • Product series / family name
    Ethernet switches
  • Connection capacity
    6-ports
  • Main function
    Ethernet Switch
  • Functions
    Industrial Ethernet switch
  • Communication protocol
    Ethernet
  • Ambient air temperature for operation
    -40...+70 °C
  • Benefits
    Compact Size / Small Footprint Extended environmental specifications High Reliability/Availability Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2 Million Hours (measured) Plug & Play Operation Four Au
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 100 series
  • Speed
    Maximum throughput 1.2Gbit/s
  • Order code / Manufacturer SKU
    106FXE2-SC-15
  • Secondary brand
    N-Tron
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 2 x Fiber optic SC connectors (single-mode; 100BaseFX; 15km rated optical fiber)
  • Material
    Metallic case
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-3-2 cUL UL Class 1 Division 2 Hazardous locations
  • Mounting mode
    DIN rail

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
