106FXE2-SC-80 Red Lion Industrial Automation Components

106FXE2-SC-80 on Powermatic Associates
Red Lion

Part#:106FXE2-SC-80

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

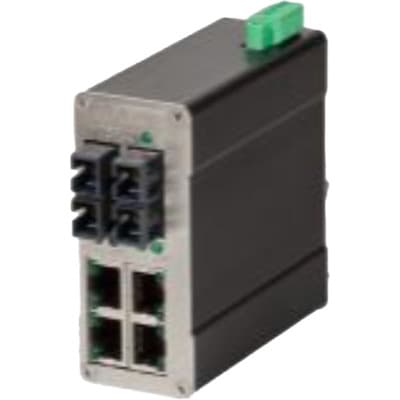

Red Lion 106FXE2-SC-80 is an industrial Ethernet switch designed for robust networking applications. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance reliability in critical systems. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for single-mode fibers, capable of reaching up to 80km. It is designed to withstand ambient air temperatures for storage between -40 and +70 degrees Celsius. With a maximum throughput of 1.2Gbit/s, it ensures efficient data handling. The switch is housed in a metallic case, adheres to IP30 rating for protection, and is suitable for DIN rail mounting. It includes 6 ports in total, aligning with the N-Tron 100 series specifications under the UNSPSC code.

Product Details

  • Functions
    Industrial Ethernet switch
  • Material
    Metallic case
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-3-2 cUL UL Class 1 Division 2 Hazardous locations
  • Product series / family name
    Ethernet switches
  • Ambient air temperature for operation
    -40...+70 °C
  • Main function
    Ethernet Switch
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 2 x Fiber optic SC connectors (single-mode; 100BaseFX; 80km rated optical fiber)
  • Mounting mode
    DIN rail
  • Equivalent to
    106FXE2SC80
  • Primary brand
    Red Lion
  • Connection capacity
    6-ports
  • Communication protocol
    Ethernet
  • Degree of protection
    IP30
  • Benefits
    Compact Size / Small Footprint Extended environmental specifications High Reliability/Availability Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2 Million Hours (measured) Plug & Play Operation Four Au
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron 100 series
  • Speed
    Maximum throughput 1.2Gbit/s
  • Order code / Manufacturer SKU
    106FXE2-SC-80

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
