105FXE-ST-15 Red Lion Industrial Automation Components

105FXE-ST-15 on Powermatic Associates
Red Lion

Part#:105FXE-ST-15

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

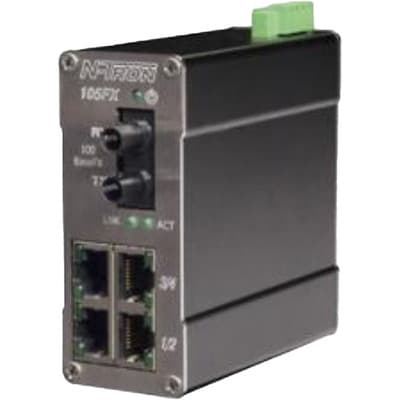

Red Lion 105FXE-ST-15 is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance reliability in demanding environments. This switch features four RJ45 ports supporting 10/100BaseTX and one fiber optic ST connector for single-mode fiber with a 15km rated optical fiber length, ensuring long-distance communication. The ambient air temperature for storage is specified from -40 to +70 degrees Celsius. With a control voltage for maximum throughput at 1Gbit/s, it meets the needs for high-speed data transmission. The rated voltage is marked as IP30, indicating its enclosure's degree of protection. Utilizing DIN rail technology for mounting and enclosed in a metallic case, this 5-port Ethernet switch is identified under the UNSPSC code as part of the N-Tron 100 series, catering specifically to industrial applications requiring robust network solutions.

Product Details

  • Product series / family name
    Ethernet switches
  • Connection capacity
    5-ports
  • Equivalent to
    105FXEST15
  • Primary brand
    Red Lion
  • Functions
    Industrial Ethernet switch
  • Communication protocol
    Ethernet
  • Material
    Metallic case
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Mounting mode
    DIN rail
  • Main function
    Ethernet Switch
  • Secondary brand
    N-Tron
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 1 x Fiber optic ST connector (single-mode; 100BaseFX; 15km rated optical fiber)
  • Order code / Manufacturer SKU
    105FXE-ST-15
  • Sub-range name
    N-Tron 100 series
  • Degree of protection
    IP30
  • Speed
    Maximum throughput 1Gbit/s
  • Ambient air temperature for operation
    -40...+70 °C
  • Benefits
    Compact Size / Small Footprint Extended environmental specifications High Reliability/Availability Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2M Hours (measured) Plug-and-Play operation Four Auto Se
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-3-2 cUL UL Class 1 Division 2 Hazardous locations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
