105FXE-SC-15-POE-MDR Red Lion Industrial Automation Components

105FXE-SC-15-POE-MDR on Powermatic Associates
Red Lion

Part#:105FXE-SC-15-POE-MDR

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

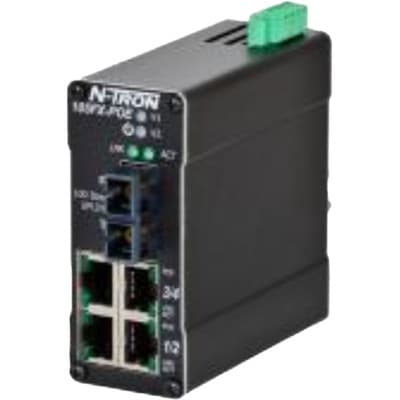

Red Lion 105FXE-SC-15-POE-MDR is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage of 46-49Vdc, specifically 48Vdc, and features redundant power inputs for enhanced reliability. This switch includes 4 RJ45 ports supporting 10/100BaseTX with IEEE 802.3af/at PoE+ for powering devices directly through the Ethernet cable, and 1 fiber optic SC connector for single-mode fiber with a 15km rated optical length, suitable for long-distance communication. The rated current for the fiber optic connection is 100BaseFX. It is housed in a metallic case designed for tall enclosure mounting on a Metal DIN Rail (MDR), ensuring compatibility with standard industrial mounting practices. The ambient air temperature range for storage is specified from -40 to +85 degrees Celsius. The switch is part of the N-Tron 100 series, adhering to Ethernet speed and rated impulse voltage (Uimp) standards for Ethernet technology, and is classified under the UNSPSC code for Ethernet switches.

Product Details

  • Mounting mode
    DIN rail
  • Equivalent to
    105FXESC15POEMDR
  • Connection capacity
    5-ports
  • Secondary brand
    N-Tron
  • Design
    tall encl. (MDR - Metal DIN Rail)
  • Ambient air temperature for operation
    -40...+85 °C
  • Communication protocol
    Ethernet
  • Material
    Metallic case
  • Contents
    Metal DIN rail clip
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 100 series
  • Product series / family name
    Ethernet switches
  • Supply voltage (DC)
    46-49Vdc (48Vdc) (redundant pwr. inputs)
  • Main function
    Ethernet Switch
  • Functions
    Industrial Ethernet switch
  • Order code / Manufacturer SKU
    105FXE-SC-15-POE-MDR
  • Connection type
    4 x RJ45 ports (10/100BaseTX) (with IEEE 802.3af/at PoE+) 1 x Fiber optic SC connector (single-mode; 100BaseFX; 15km rated optical fiber)
  • Compliant with standard(s)
    CE EN 55011 ABS UL RoHS compliant ABS UL Class 1 Division 2 Hazardous locations
  • Benefits
    Compact / Space Saving Package Unmanaged operation Extended environmental specifications Automatic Detection of Connected PoE Devices Support for Full/Half Duplex Operation Auto-sensing Duplex / Speed / MDIX (RJ-45) Full wire speed communications Power Fa

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
