SLAD4.100 Puls AC/DC Power Supplies

Name: SLAD4.100
Brand: Puls

Part#:SLAD4.100

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Product description

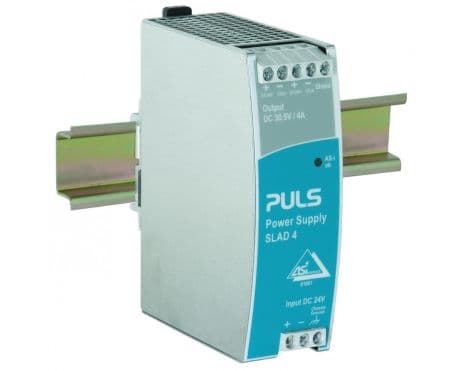

PULS SLAD4.100 is a power supply unit designed with a PFC compliant to EN 61000-3-2 standards, featuring a DC-OK relay contact output. It serves as an AS-Interface power supply unit (PSU) and DC/DC-Converter, encased in a robust metal housing. This unit offers screw-clamp connections for secure installation and measures W40mm x H124mm x D102mm. It operates on a supply voltage range of 18Vdc-31.4Vdc, with a nominal 24Vdc, and delivers a rated current of 4A at 30.6Vdc, incorporating a derating curve from 3W/+60°C to +70°C. Designed for DIN rail mounting, it can function within an ambient air temperature range of -25°C to +70°C. The SLAD4.100 has a net width of 40 mm and a peak inrush current consumption of 1.8A. It is compatible with DC networks only and includes protection functions against output overvoltage (up to 36Vdc max.), with an active input inrush current limiter, and overload/short-circuit conditions (min. 5A/max. 12A current). Series or parallel operation is not supported. The output voltage is fixed at 30.6Vdc, with an efficiency of 0.905 at 24Vdc input. Power dissipation/losses are 12.7W at 24Vdc input with full output load. The unit features a 650ms start-up delay, a 100ms rise time under nominal input with constant full current load and 0mF load capacitance, and a 200ms rise time with 5mF load capacitance. Ripple is maintained at 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
