RS 4.5T-10 Turck Cordsets

Name: RS 4.5T-10
Brand: Turck
Price: 59.4 USD
Availability: InStock

Turck RS 4.5T-10 RS 4.5T-10 Actuator and Sensor Cordset, Connection Cable

Part#:RS 4.5T-10

Manufacturer:Turck

Alt. Part#:U2186-20

Product Lifecycle:Active

In-stock parts: 13

Sep 28, 2024

RS 4.5T-10 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the RS 4.5T-10 Turck price in the box on the right side or send a quick quote.

Product Details

Weight
477 g
Connector A - Number of Pins
5
Cable length (L)
10.0 m
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Cable Jacket Color
Gray
Cable Jacket Material
PVC
Voltage
250 V
Connector A
M12 × 1
Application
Actuator and Sensor
Current
4 A
Number of Conductors
5
Material coupling/housing A
Brass
Connector A - Style
Straight, Male

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

RS 4.5T-10 Description

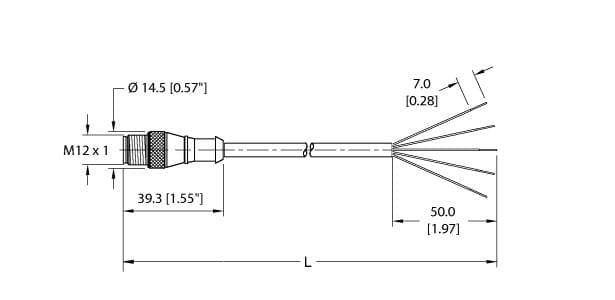

Turck RS 4.5T-10 is a single-ended mating cable/cordset designed for automation applications, featuring a 5-pin M12 eurofast male connector with T-barb fitting to bare end flying leads. This cable is constructed with a nickel-plated brass coupling nut and a PVC jacket, ensuring durability and longevity. The cable sheath has an outer diameter of 5.7mm and spans a length of 10 meters (approximately 32 feet), making it suitable for various installation needs. It is designed to carry a rated current of 4A through its 5 x #22AWG cross-section. The RS 4.5T-10 offers a high degree of protection with ratings of IP68, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P, indicating its capability to withstand harsh environmental conditions. The cable is gray, aligning with standard industrial aesthetics, and supports a 5-wire connection system.
