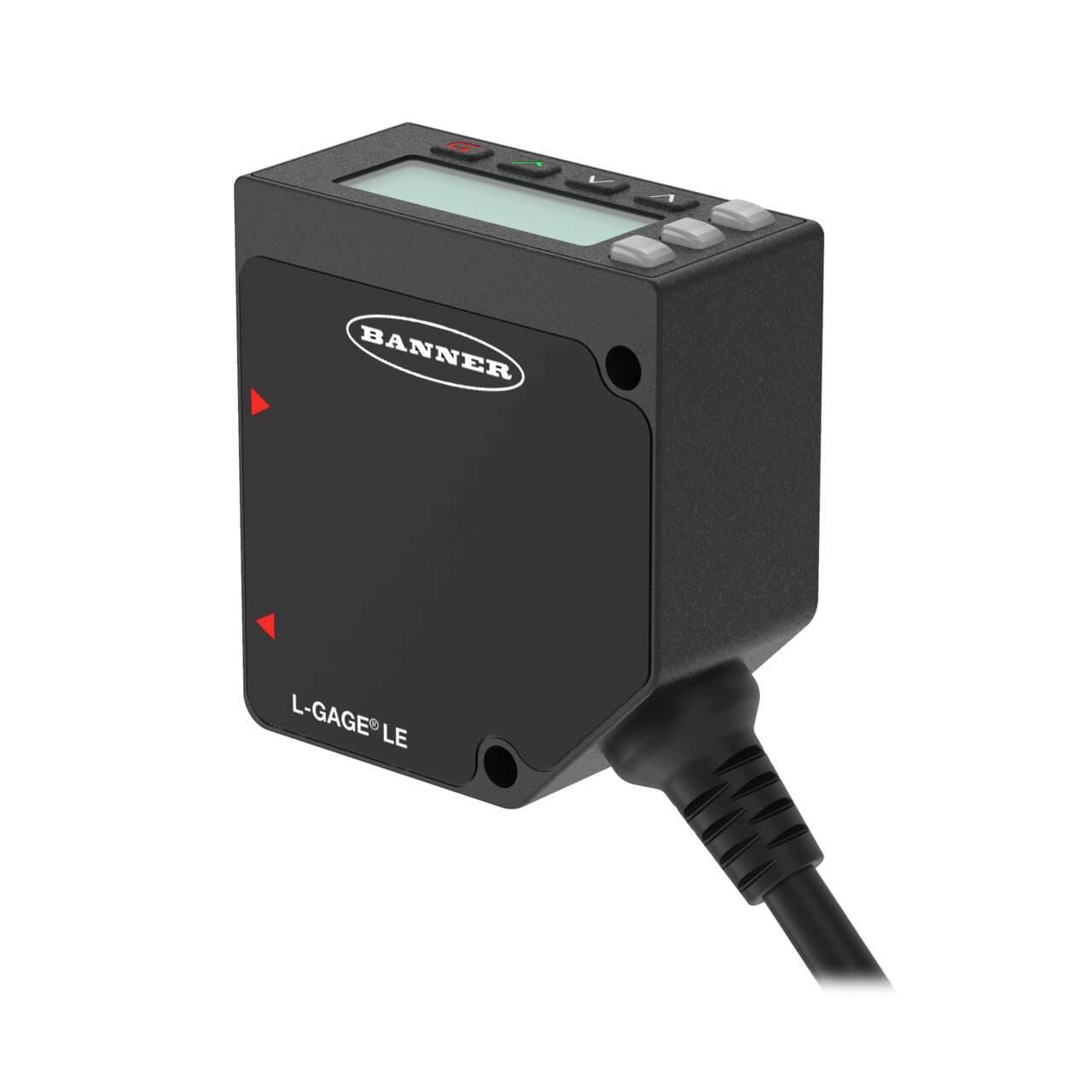

LE250UQP Banner Measurement Sensors

Product Details

• Weight
  249.4756 g
• Country Of Origin
  US
• RS-485
  No
• RS-422
  No
• SSI
  No
• Profibus
  No
• 1-wire Serial Interface
  No
• Wireless
  No
• PROFINET
  No
• RS-232
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Feature: Remote Teach
  Yes
• Feature: Health/ Marginal Signal Output
  Yes
• Feature: Timing (Hold/Delay)
  Yes
• Feature: Chemical Resistant
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Power/Current Consumption (exclusive of load)
  70 mA @ 24 V dc
• Max Off-state Leakage Current (µA)
  NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
• Max Ambient Light (Lux)
  10000
Alarm Output (mA)
100
Laser Control
Yes
Analog Linearity (mm)
Linearity is the lesser of Accuracy or 0.3% of full scale range (± 0.9 mm) at any given distance
Minimum Window Size (mm)
1
Discrete Output Hysteresis (mm)
Automatically adjusted
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Spot Size (@ Reference Distance)
0.9 mm x 1.2 mm @ 400 mm
Minimum Response Time (ms)
2
Max Op. Relative Humidity Non-Condensing (%)
90 at 55°C
Warm-up Time (minutes)
10
Window Material
Acrylic
Min Operating Temperature (°C)
-20
Max Operating Temperature (°C)
55
Storage Temperature (°C)
-30 to 65
Output Protection
Protected against continuous overload and short circuit
NEMA Rating
NEMA 6
IP Rating
IP67
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage PNP Outputs
< 3 V at 100 mA
Analog Voltage Output Rating
2.5 kΩ min. load impedance
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Adjustments
Push Button; Remote Teach
Number of Pins
5
Sensing Beam Wavelength (nm)
650
Temperature Effect (mm/°C)
+/- 0.03 mm/°C from 100 to 250 mm, +/- 0.15 mm /°C at 1000 mm
Minimum Sensing Distance (mm)
100
Delay at Power-up (ms)
2000
Input/Output
Analog & Discrete
Power Supply
12-30 V dc
Connection
Pigtail QD
Max Sensing Distance (mm)
400
Analog Output Configuration
0-10 V dc
Analog Resolution/Discrete Repeatability
100 mm to 250 mm: < 0.02; 250 mm to 400 mm: < 0.2
Quick Disconnect Type
M12 (Euro)
Indicator
LCD; LED(s)
Laser Classification
Class 2
Primary Housing Material
Zinc Alloy Die-Cast
Sensing Beam
Visible Red Laser
Sensing Mode (General)
Proximity
Housing Style
Rectangular
Device Type
Sensor
Sensing Mode (Detailed)
Triangulation
Cable Length (m)
0.15
Power
DC
PC Configurable
No
Max Measurement Range
>100 mm - <=500 mm
Sub-range name
LE
Functions
Triangulation class 2 Laser displacement sensor/transmitter green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Wavelength
650 nm
Product series / family name
L-GAGE series
Design
triangulation system LCD display teach mode
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
Primary brand
Banner Engineering
Display
LCD 2 lines x 8 characters
Main function
Sensor (Displacement)
Sensing distance
100...400mm
Analog outputs
1 x analog output (0-10Vdc)
Ambient air temperature for operation
-20...+55 °C
Compliant with standard(s)
cULus CE
Light Color
Visible class 2 red Laser
Degree of protection
IP67 NEMA 6
Order code / Manufacturer SKU
91690
Shape
Rectangular
Digital outputs
1 x digital output (PNP/NPN transistor)
Material
Die-cast Zinc alloy housing Acrylic window
Protection functions
Overload Short-circuit
