LE250KQP
Banner
Product Lifecycle: Active

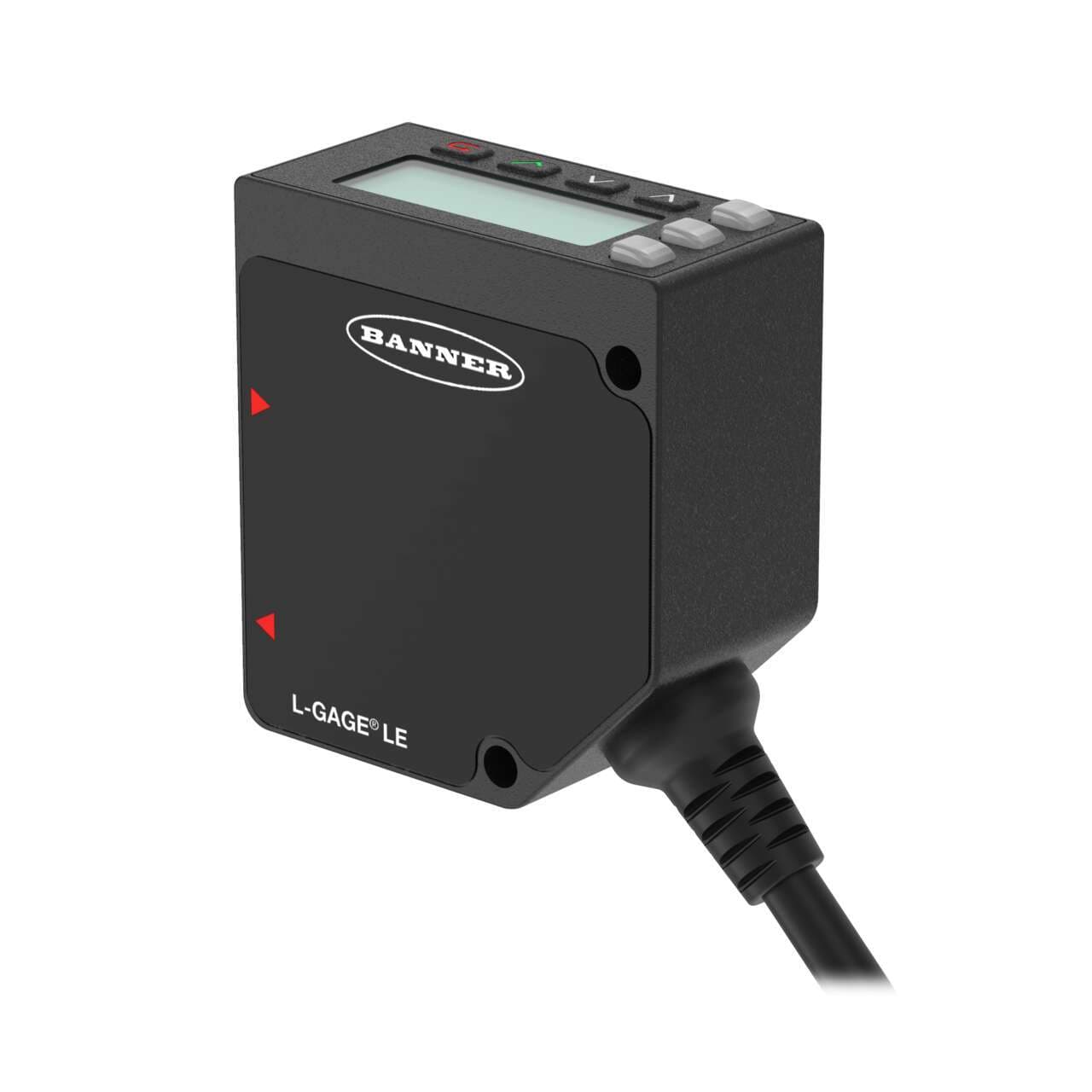

Banner Engineering LE250KQP is a Class 2 laser displacement sensor, part of the LE series, designed with a triangulation system and an LCD display for easy configuration through TEACH mode. It emits a visible class 2 red laser with a wavelength of 650 nm for displacement measurement. The sensor is housed in a rectangular, die-cast zinc alloy with an acrylic window, ensuring durability. It comes pre-wired with a 6" / 150mm pigtail that terminates with a 5-pin Euro-style M12 connector for connectivity. The LE250KQP supports IO-Link communication protocol, facilitating integration into automated systems. It offers protection against overload and short-circuit conditions. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -20 to +55 °C. It is rated with a degree of protection of IP67 and NEMA 6, making it suitable for harsh environments. The sensing distance ranges from 100 to 400mm, and it features 1 x digital output (PNP/NPN transistor) for signaling.
Banner Engineering LE250KQP is a Class 2 laser displacement sensor, part of the LE series, designed with a triangulation system and an LCD display for easy configuration through TEACH mode. It emits a visible class 2 red laser with a wavelength of 650 nm for displacement measurement. The sensor is housed in a rectangular, die-cast zinc alloy with an acrylic window, ensuring durability. It comes pre-wired with a 6" / 150mm pigtail that terminates with a 5-pin Euro-style M12 connector for connectivity. The LE250KQP supports IO-Link communication protocol, facilitating integration into automated systems. It offers protection against overload and short-circuit conditions. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -20 to +55 °C. It is rated with a degree of protection of IP67 and NEMA 6, making it suitable for harsh environments. The sensing distance ranges from 100 to 400mm, and it features 1 x digital output (PNP/NPN transistor) for signaling.
- WirelessNo
- SSINo
- 1-wire Serial InterfaceNo
- ProfibusNo
- RS-485No
- RS-422No
- PROFINETNo
- Feature: Health/ Marginal Signal OutputYes
- Common Ethernet ProtocolNo
- IO LinkYes
- RS-232No
- Feature: Chemical ResistantNo
- Supply Protection CircuitryProtected against reverse polarity and transient overvoltages
- Feature: Remote TeachYes
- Feature: Timing (Hold/Delay)Yes
- Power/Current Consumption (exclusive of load)70 mA @ 24 V dc
- Laser ControlYes
- Discrete Output Hysteresis (mm)Automatically adjusted
- Alarm Output (mA)100
- Max Off-state Leakage Current (µA)PNP: <50 @ 30 V dc; Push/Pull: N/A
- Spot Size (@ Reference Distance)0.9 mm x 1.2 mm @ 400 mm
- Remote Teach and Laser Control Input Impedence10 kΩ min.
- Minimum Window Size (mm)1
- Minimum Response Time (ms)2
- Discrete (Switched) Outputs1 NPN/PNP Configurable; 1 PNP
- Min Operating Temperature (°C)-20
- Max Op. Relative Humidity Non-Condensing (%)90 at 55°C
- Max Ambient Light (Lux)10000
- Warm-up Time (minutes)10
- Window MaterialAcrylic
- NEMA RatingNEMA 6
- Max Operating Temperature (°C)55
- Storage Temperature (°C)-30 to 65
- IP RatingIP67
- Output ProtectionProtected against continuous overload and short circuit
- Max Discrete (Switched) Output (mA)100
- Output Saturation Voltage PNP Outputs<2 V
- Mechanical ShockIEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- VibrationMIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Number of Pins5
- Temperature Effect (mm/°C)+/- 0.03 mm/°C from 100 to 250 mm, +/- 0.15 mm /°C at 1000 mm
- AdjustmentsPush Button; Remote Teach
- Sensing Beam Wavelength (nm)650
- Delay at Power-up (ms)3000
- Power Supply12-30 V dc
- Minimum Sensing Distance (mm)100
- Max Sensing Distance (mm)400
- Analog Resolution/Discrete Repeatability100 mm to 250 mm: < 0.02; 250 mm to 400 mm: < 0.2
- Quick Disconnect TypeM12 (Euro)
- IndicatorLCD; LED(s)
- ConnectionPigtail QD
- Input/OutputDiscrete
- Primary Housing MaterialZinc Alloy Die-Cast
- Laser ClassificationClass 2
- Device TypeSensor
- Housing StyleRectangular
- Sensing Mode (Detailed)Triangulation
- Sensing Mode (General)Proximity
- PC ConfigurableNo
- Cable Length (m)0.15
- PowerDC
- Sensing BeamVisible Red Laser
- Max Measurement Range>100 mm - <=500 mm
- Ambient air temperature for operation-20...+55 °C
- Sensing distance100...400mm
- Degree of protectionIP67 NEMA 6
- Supply voltage (DC)12Vdc-30Vdc (24Vdc nom.)
- Connection typePre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
- Primary brandBanner Engineering
- FunctionsTriangulation class 2 Laser displacement sensor green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
- ShapeRectangular
- Digital outputs1 x digital output (PNP/NPN transistor)
- Compliant with standard(s)cULus CE
- Product series / family nameL-GAGE series
- Wavelength650 nm
- Communication protocolIO-Link
- Order code / Manufacturer SKU97764
- DisplayLCD 2 lines x 8 characters
- Light ColorVisible class 2 red Laser
- Designtriangulation system LCD display teach mode
- MaterialDie-cast Zinc alloy housing Acrylic window
- Sub-range nameLE
- Protection functionsOverload Short-circuit
- Main functionSensor (Displacement)
