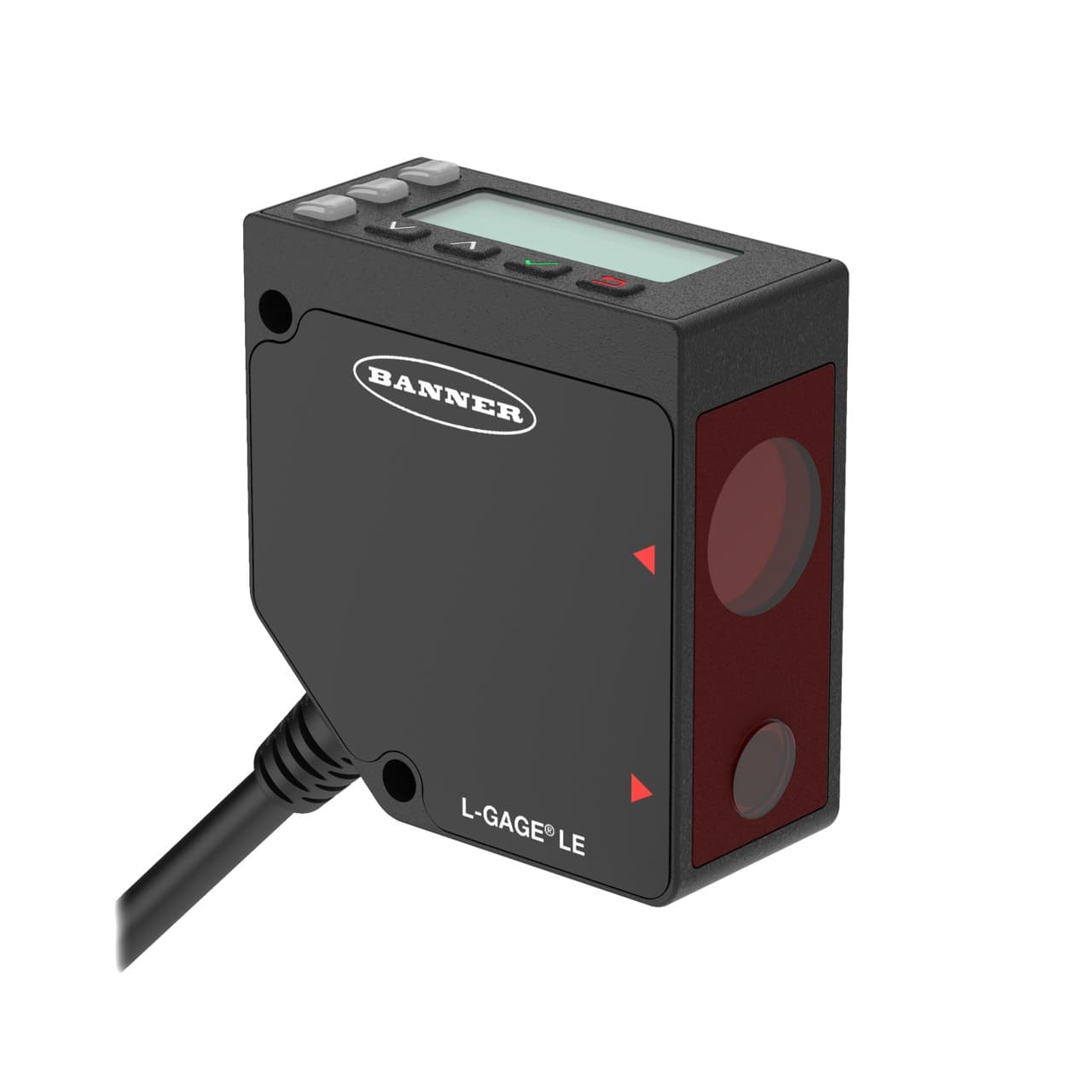

LE250DQP Banner Electronic Components

Product Details

• Max Off-state Leakage Current (µA)
  NPN: < 200 at 30 V dc; PNP: < 10 at 30 V dc
• Max Ambient Light (Lux)
  10000
• Power/Current Consumption (exclusive of load)
  70 mA @ 24 V dc
• Laser Control
  Yes
• Minimum Window Size (mm)
  1
• Discrete Output Hysteresis (mm)
  Automatically adjusted
• Alarm Output (mA)
  100
• Spot Size (@ Reference Distance)
  0.9 mm x 1.2 mm @ 400 mm
• Window Material
  Acrylic
• Warm-up Time (minutes)
  10
• Minimum Response Time (ms)
  2
• Min Operating Temperature (°C)
  -20
• Max Operating Temperature (°C)
  55
• Max Op. Relative Humidity Non-Condensing (%)
  90 at 55°C
• Storage Temperature (°C)
  -30 to 65
• Discrete (Switched) Outputs
  2 NPN/PNP Configurable
• Output Protection
  Protected against continuous overload and short circuit
• NEMA Rating
  NEMA 6
• Mechanical Shock
  IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
• Output Saturation Voltage PNP Outputs
  < 3 V at 100 mA
Sensing Beam Wavelength (nm)
650
Number of Pins
5
Temperature Effect (mm/°C)
+/- 0.03 mm/°C from 100 to 250 mm, +/- 0.15 mm /°C at 1000 mm
Adjustments
Push Button; Remote Teach
Minimum Sensing Distance (mm)
100
Quick Disconnect Type
M12 (Euro)
Indicator
LCD; LED(s)
Sensing Beam
Visible Red Laser
Profibus
No
SSI
No
Wireless
No
RS-485
No
1-wire Serial Interface
No
Common Ethernet Protocol
No
RS-232
No
RS-422
No
IO Link
No
PROFINET
No
Feature: Health/ Marginal Signal Output
Yes
Feature: Timing (Hold/Delay)
Yes
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Feature: Chemical Resistant
No
Feature: Remote Teach
Yes
IP Rating
IP67
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Delay at Power-up (ms)
1000
Max Sensing Distance (mm)
400
Analog Resolution/Discrete Repeatability
100 mm to 250 mm: < 0.02; 250 mm to 400 mm: < 0.2
Power Supply
12-30 V dc
Primary Housing Material
Zinc Alloy Die-Cast
Connection
Pigtail QD
Input/Output
Discrete
Laser Classification
Class 2
Device Type
Sensor
Max Measurement Range
>100 mm - <=500 mm
Power
DC
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Triangulation
Housing Style
Rectangular
Cable Length (m)
0.15
PC Configurable
No
