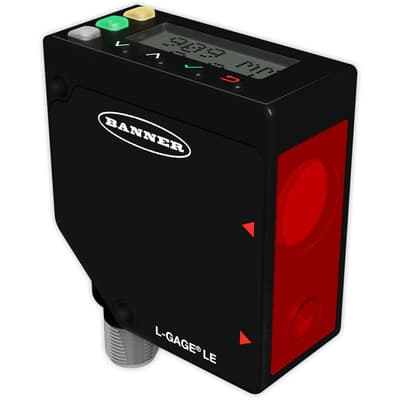

LE250IC1 W-30 Banner Sensors & Transducers

Name: LE250IC1 W-30
Brand: Banner

Part#:LE250IC1 W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

Triangulation class 1 Laser displacement sensor/transmitter with triangulation system + LCD display + teach mode - Banner Engineering (L-GAGE series - LE) - Part #95388 - Sensing range 100...400mm - Visible class 1 red Laser light (650nm) - 1 x digital ou

Product Details

Product series / family name
L-GAGE series
Sub-range name
LE
Shape
Rectangular
Display
LCD 2 lines x 8 characters
Light Color
Visible class 1 red Laser
Sensing distance
100...400mm
Protection functions
Overload Short-circuit
Order code / Manufacturer SKU
95388
Main function
Sensor (Displacement)
Design
triangulation system LCD display teach mode
Digital outputs
1 x digital output (PNP/NPN transistor)
Ambient air temperature for operation
-20...+55 °C
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Functions
Triangulation class 1 Laser displacement sensor/transmitter green LED (power ON) yellow LED (analog output ON) yellow LED (discrete output ON)
Wavelength
650 nm
Analog outputs
1 x analog output (4-20mA)
Compliant with standard(s)
cULus CE
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Material
Die-cast Zinc alloy housing Acrylic window

Degree of protection

IP67 NEMA 6

Equivalent to

LE250IC1W30

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
