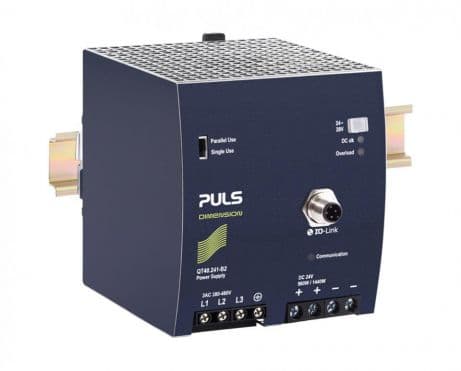

QT40.241-B2 Puls AC/DC Power Supplies

QT40.241-B2 on Powermatic Associates
Puls

Part#:QT40.241-B2

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Product description

Power Supply, 960W, AC 380-480V input, 3 phase, 24-28Vdc output, 40A, IO-Link

Product Details

  • UL File No.
    E198865
  • Phase
    3 Phase
  • Height
    124 mm
  • Width
    110 mm
  • Depth
    127 mm
  • Current Output
    40 A
  • Current Input
    1.65 A
  • Power
    960 W
  • Efficiency
    95.3 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QT40.241-B2 Related Documents

Datasheet.pdf

Similar products from: Puls AC/DC Power Supplies

ML15.051 on Powermatic Associates

ML15.051

Puls

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

1 in stock
CPS20.121 on Powermatic Associates

CPS20.121

Puls

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

1 in stock
CP10.241-S2 on Powermatic Associates

CP10.241-S2

Puls

PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input.

4 in stock
QS10.121 on Powermatic Associates

QS10.121

Puls

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 15A at 12Vdc and 13.5A at 15Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a wide spectrum. The QS10.121, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, delivering a rated power of 203W at 15V, 180W at 12V, and can momentarily supply up to 270W for 4 seconds. The output voltage is adjustable between 12Vdc and 15Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, achieving up to 0.918 at 230Vac. It exhibits a peak current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 32ms at nominal input conditions. Power dissipation stands at approximately 16.1W to 16.7W under full load conditions, and the electrical durability ranges significantly based on operating conditions, with up to 215000 hours at 25°C and 30A output with 1AC 230Vac input. The output stage capacitance is 7000µF, and ripple is maintained at 50mVpp across a 20Hz to 20MHz range.

1 in stock
QS3.241 on Powermatic Associates

QS3.241

Puls

PULS QS3.241 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 3.4A at 24Vdc and 3A at 28Vdc, with spring-clamp connections for ease of installation. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-375Vdc for DC, accommodating various network configurations including single-phase (1AC) or DC. The QS3.241, part of the Q-series, measures 32mm in width, 124mm in height, and 102mm in depth, housed in an aluminium casing. It delivers a rated power of 80W at 24V, 84W at 28V, and can handle up to 120W short-term for 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, with comprehensive protection functions against overvoltage, overload, and short-circuit conditions. Efficiency rates vary by input voltage, achieving up to 0.9 at 230Vac. The unit exhibits a start-up delay of 330-360ms, with a hold time of 174ms at 230Vac input. Power dissipation is noted at 9.1W for 230Vac input under full load. Electrical durability spans up to 224000 hours, depending on conditions, and the output stage capacitance is 1500µF, with a ripple of 50mVpp across a 20Hz to 20MHz range.

4 in stock
SL10.100 on Powermatic Associates

SL10.100

Puls

PULS SL10.100 is a power supply unit featuring an EMC filter and DC-OK relay contact output. It operates as an AC/DC PSU/converter with capabilities for parallel operation and a power boost up to 288W. The unit is equipped with screw-clamp connections and has dimensions of W120mm x H124mm x D102mm. It supports a supply voltage range of 85Vac-132Vac / 176Vac-264Vac across various nominal voltages from 100Vac to 240Vac at a frequency of 47-63Hz. The SL10.100 provides a rated current of 10A at 24Vdc with a derating at 6W/+60°C to +70°C. Designed for DIN rail mounting, it can operate within an ambient air temperature range of 0 to +70 °C. The current consumption is 6A with a 115V input and 2.6A with a 230V input, with a maximum inrush of 30A at 264Vac input. This single-phase unit includes protection functions against output overvoltage (35V), short-circuit, overload/short-circuit current, and allows for series/parallel operation with power back immunity (34V). The output voltage is adjustable between 24Vdc and 28Vdc, with an efficiency of 0.9 at 230Vac input. The rated power is 288W at temperatures up to +45°C and 240W up to +60°C. It features a hold time of 25ms at 196Vac input, power dissipation/losses of 26.7W at full output load with 230Vac input, a start-up delay of 100ms, a rise time of 5-20ms under nominal input at constant full current load, and a ripple of 30mVpp at 20Hz to 20MHz with a 50Ω load.

1 in stock

Manufacturer warranty

QT40.241-B2 Puls

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare QT40.241-B2 with other AC/DC Power Supplies products

UL File No.

Phase

Height

Width

Depth

Current Output

Current Input

Power

Efficiency

Selected product

QT40.241-B2
Backordered
QT40.241-B2
Puls

Power Supply, 960W, AC 380-480V input, 3 phase, 24-28Vdc output, 40A, IO-Link

UL File No.E198865

Phase3 Phase

Height124 mm

Width110 mm

Depth127 mm

Current Output40 A

Current Input1.65 A

Power960 W

Efficiency95.3 %

ML15.051
1 in stock
ML15.051
Puls

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates w...

UL File No.E198865

Phase1 Phase

Height75 mm

Width23 mm

Depth91 mm

Current Output3 A

Current Input0.28 A

Power15 W

Efficiency77.2 %

CPS20.121
1 in stock
CPS20.121
Puls

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wid...

UL File No.E198865

Phase1 Phase

Height124 mm

Width65 mm

Depth127 mm

Current Output30 A

Current Input3.3 A

Power405 W

Efficiency92.6 %

About the manufacturer

Puls

Powermatic Associates is an authorized Puls distributor, proudly offering their innovative and reliable industrial power supply solutions. Puls is a renowned manufacturer specializing in high-quality DIN rail power supplies, engineered to deliver optimal performance and efficiency across various demanding applications. Their product portfolio includes single-phase and three-phase power supplies, D...

About the Product Category

AC/DC power supplies are power supplies that convert alternating current from the grid into direct current that is needed to power most electronics. AC/DC power supplies are integral components in systems that make the world go round.

AC/DC Power Supplies

Recently viewed products

MDI4MRQ34B2-EQ on Powermatic Associates

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

QT40.361 on Powermatic Associates

QT40.361

Verified stock: 0

PULS QT40.361 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 26.7A at 36Vdc and 22.9A at 42Vdc, with a power derating of 24W at temperatures from +60°C to +70°C. Connection is facilitated through screw-clamp connections. The supply voltage accommodates a wide range of 323Vac to 576Vac (with nominal values including 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac; 47-63Hz), featuring a 3-phase input, a turn-ON voltage of 3 x 305Vac, and a shutdown voltage of 3 x 275Vac in steady-state conditions. This part of the Q-series measures W110mm x H124mm x D127mm and is housed in aluminium. It is designed for a 3-phase network, with a net width of 110 mm. The rated power is 960W at both 36Vdc and 42Vdc, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 36Vdc and 42Vdc, with a turn-ON overshoot of 750mV. Protection functions include output overvoltage protection, active input inrush current limiter, and overload/short-circuit protection. It supports series or parallel operation for increased output power and is resistant to back-feeding loads up to 50V. The efficiency rates are 0.952 at 3x480Vac input and 0.953 at 3x400Vac input. Peak inrush current consumption is 6A at both 3x400Vac and 3x480Vac inputs. The unit has a start-up delay of 500-600s, with rise times of 40ms and 45ms under specified conditions, and a hold time of 25ms. Power dissipation losses are 48.4W and 47.3W for 3x480Vac and 3x400Vac inputs, respectively, under full output load. Electrical durability spans from 363000 hours to 72000 hours across various conditions, with a ripple of 130mVpp at 20Hz to 20MHz and an output stage capacitance of 4700µF.

Puls

QT40.481 on Powermatic Associates

QT40.481

Verified stock: 0

PULS QT40.481 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It supports DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit features a design that includes a 50% power reserve and a DC-OK relay contact output. It offers a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a power derating applicable from 24W at +60°C to +70°C. The QT40.481 utilizes screw-clamp connections for its inputs and outputs and is designed to work with a supply voltage (AC) ranging from 323Vac to 576Vac across various nominal voltages, accommodating a wide range of 3-phase inputs. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W110mm x H124mm x D127mm. This unit is compatible with 3-phase networks and has a net width of 110 mm. Its rated power is 960W at both 48Vdc and 54Vdc, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 54Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The QT40.481 supports series or parallel operation for increased output power and is resistant to back-feeding loads up to 63V. It boasts high efficiency rates of 0.952 and 0.954 for 3x480Vac and 3x400Vac inputs, respectively. Peak inrush current consumption is capped at 6A for both 3x400Vac and 3x480Vac inputs. The unit exhibits a start-up delay of 500-600s and rise times of 23ms and 47ms under specified conditions, with a hold time of 25ms. Power dissipation losses are noted at 48.4W and 46.3W for full output loads at 3x480Vac and 3x400Vac inputs, respectively. Its electrical durability spans up to 324000 hours at 25°C and 10A output for a 3AC 400Vac input, with varying durability at different temperatures and outputs. The ripple is specified at 150mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 3700 µF.

Puls

QT40.242 on Powermatic Associates

QT40.242

Verified stock: 0

PULS QT40.242 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It supports DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit features an extended lifetime and includes a DC-OK relay contact output. It provides a rated current of 40A at 24Vdc and 34.3A at 28Vdc, with a derating to 24W between +60°C and +70°C. The QT40.242 utilizes screw-clamp connections and accepts a wide range supply voltage of 323Vac-576Vac across various nominal voltages (380Vac / 400Vac / 415Vac / 440Vac / 480Vac / 500Vac / 525Vac; 47-63Hz) with a 3-phase input. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W110mm x H124mm x D127mm. Designed for a 3-phase network, it has a net width of 110 mm and offers a rated power of 960W (up to 1440W short-term for 4s). The output voltage is adjustable between 24Vdc and 28Vdc. Protection features include output overvoltage protection and active input inrush current limiter, with overload and short-circuit current protection supporting both series and parallel operation. The unit is resistant to back-feeding loads up to 35V. It achieves an efficiency of 0.952 to 0.953 depending on the input voltage, with a peak current consumption of 6A max. inrush. The start-up delay ranges from 500-600s, with a rise time of 35-40ms and a hold time of 25ms. Power dissipation/losses are 47.3W to 48.4W, depending on the input voltage. Electrical durability varies with conditions, reaching up to 475,000 hours at 25°C and 20A output with a 3AC 400Vac input. Ripple is maintained at 100mVpp, and the output stage capacitance is 10200 µF.

Puls

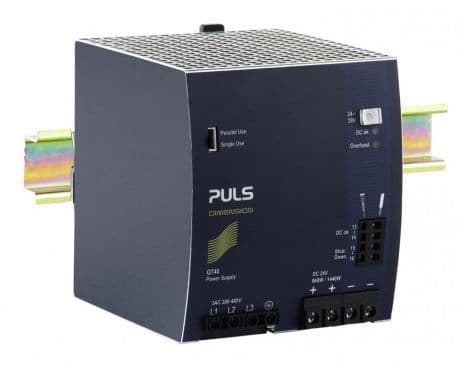

QT40.241 on Powermatic Associates
