QS20.244
Puls
Product Lifecycle: Active
PULS QS20.244 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure and efficient connectivity. It supports a supply voltage range of 180Vac to 264Vac, with specific nominal values including 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz. The QS20.244, part of the Q-series, measures 70mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for single-phase networks and offers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring protection functions against overvoltage, overload, and short-circuit conditions. It allows for series or parallel operation to increase output power, with a notable efficiency of 0.945 at 230Vac input. The unit's current consumption peaks at 52A max during inrush at 230Vac, with a start-up delay of 140ms, and offers a hold time of 46ms at 230Vac input. Power dissipation is calculated at 28.3W under full output load at 230Vac input. Its electrical durability spans up to 307,000 hours at 40°C with a 10A output. The QS20.244 also features a ripple of 100mVpp across a 20Hz to 20MHz range and an output stage capacitance of 8500µF.

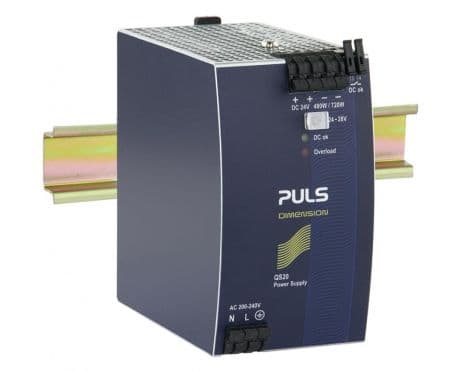

![QS20.244](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2FQS20.244.jpg&w=3840&q=75)
PULS QS20.244 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 24Vdc and 17A at 28Vdc, with spring-clamp connections for secure and efficient connectivity. It supports a supply voltage range of 180Vac to 264Vac, with specific nominal values including 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at a frequency of 47-63Hz. The QS20.244, part of the Q-series, measures 70mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for single-phase networks and offers a rated power of 480W, with a short-term capacity of 720W for up to 4 seconds. The output voltage is adjustable between 24Vdc and 28Vdc, featuring protection functions against overvoltage, overload, and short-circuit conditions. It allows for series or parallel operation to increase output power, with a notable efficiency of 0.945 at 230Vac input. The unit's current consumption peaks at 52A max during inrush at 230Vac, with a start-up delay of 140ms, and offers a hold time of 46ms at 230Vac input. Power dissipation is calculated at 28.3W under full output load at 230Vac input. Its electrical durability spans up to 307,000 hours at 40°C with a 10A output. The QS20.244 also features a ripple of 100mVpp across a 20Hz to 20MHz range and an output stage capacitance of 8500µF.
Product details
- UL File No.E198865
- Phase1 Phase
- Height124 mm
- Width70 mm
- Depth127 mm
- Current Output20 A
- Current Input4.45 A
- Power480 W
- Voltage Output24 - 28 VDC
- Voltage Input200 - 240 VAC
- Efficiency94.5 %
