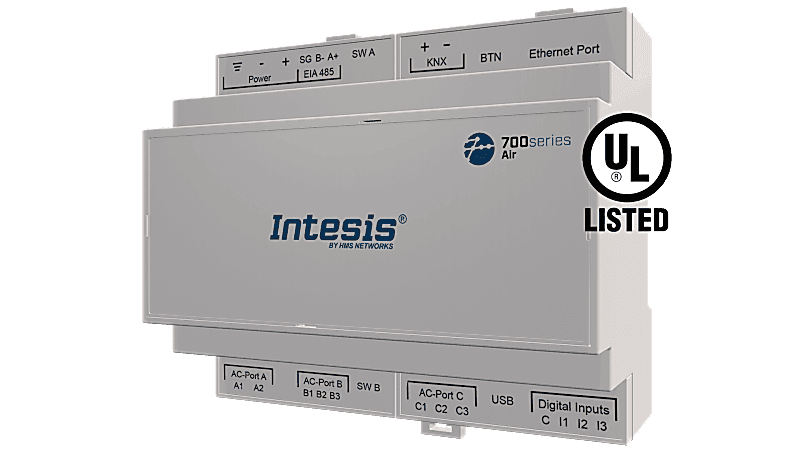

IN770AIR00SO000 HMS Networks Industrial Automation Components

Product Details

• Connectors / Input / Output
  Power supply, EIA-485, KNX, Ethernet, HVAC port, Binary inputs (dry contact), Console port USB.
• DIP & Rotary Switches
  EIA-485 serial port configuration.
• Power Connector
  3-pole
• Input Voltage (V)
  For DC: 12 .. 36 VDC ±10%, Max: 250 mA For AC: 24 VAC ±10 %, 50-60 Hz, Max: 127 mA Recommended voltage: 24 VDC, Max: 127 mA
• Export Control Classification Number (ECCN) (ERP)
  EAR99
• HS Code
  8517620000
• Dual Usage (ERP)
  No
• Country of Origin
  Spain
• ETIM Classification
  EC001604
• Push Buttons
  Factory reset. I-Am message (for BACnet only). Normal mode/programming mode switch (for KNX only).
• Contains Battery
  No
• BTL
  Yes
• UKPSTI
  Yes
• LED Indicators
  Gateway and communication status.
• WEEE Category
  IT and telecommunications equipment
• UKCA
  Yes
• UL
  Yes
• CB
  Yes
• Capacity
  Up to 16 indoor units and up to 16 outdoor units.
• Packaging Material
  Cardboard
CE
Yes
Installation Conditions
This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting
Warranty (years)
3 years
Housing Materials
Plastic
Net Width (ERP) (mm)
106 mm
Net Depth (ERP) (mm)
90 mm
Operating Temperature °C Min
0 °C
Operating Temperature °C Max
60 °C
Net Weight (ERP) (g)
240 g
Mounting
DIN rail mount (bracket included), Wall mount
Net Height (ERP) (mm)
58 mm
Not Included (in delivery)
Power supply not included.
Content of Delivery
Intesis Gateway, Installation Manual, USB Configuration cable.
