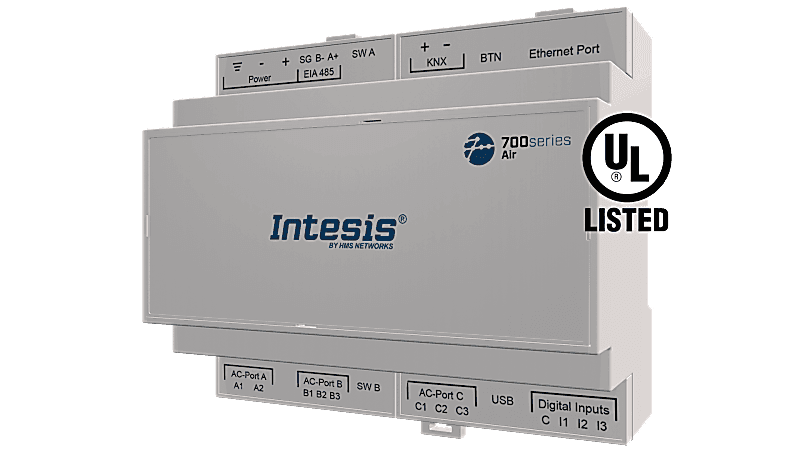

IN770AIR00MO000 HMS Networks Industrial Automation Components

Product Details

• Country of Origin
  Spain
• ETIM Classification
  EC001604
• Installation Conditions
  This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting
• Net Width (ERP) (mm)
  106 mm
• DIP & Rotary Switches
  EIA-485 serial port configuration.
• Connectors / Input / Output
  Power supply, EIA-485, KNX, Ethernet, HVAC port, Binary inputs (dry contact), Console port USB.
• AC Model Compatibility
  This gateway is compatible with Midea V4, V6, and V8 series.
• Input Voltage (V)
  For DC: 12 .. 36 VDC ±10%, Max: 250 mA For AC: 24 VAC ±10 %, 50-60 Hz, Max: 127 mA Recommended voltage: 24 VDC, Max: 127 mA
• Power Connector
  3-pole
• Export Control Classification Number (ECCN) (ERP)
  EAR99
• Dual Usage (ERP)
  No
• HS Code
  8517620000
• Push Buttons
  Factory reset. I-Am message (for BACnet only). Normal mode/programming mode switch (for KNX only).
• Contains Battery
  No
• LED Indicators
  Gateway and communication status.
• UKCA
  Yes
• CB
  Yes
• BTL
  No
• UKPSTI
  Yes
• WEEE Category
  IT and telecommunications equipment
UL
Yes
Capacity
Up to 64 indoor units and up to 16 outdoor units.
CE
Yes
Packaging Material
Cardboard
Housing Materials
Plastic
Operating Temperature °C Max
60 °C
Warranty (years)
3 years
Mounting
DIN rail mount (bracket included), Wall mount
Operating Temperature °C Min
0 °C
Net Height (ERP) (mm)
58 mm
Net Weight (ERP) (g)
240 g
Net Depth (ERP) (mm)
90 mm
Not Included (in delivery)
Power supply not included.
Content of Delivery
Intesis Gateway, Installation Manual, USB Configuration cable.
