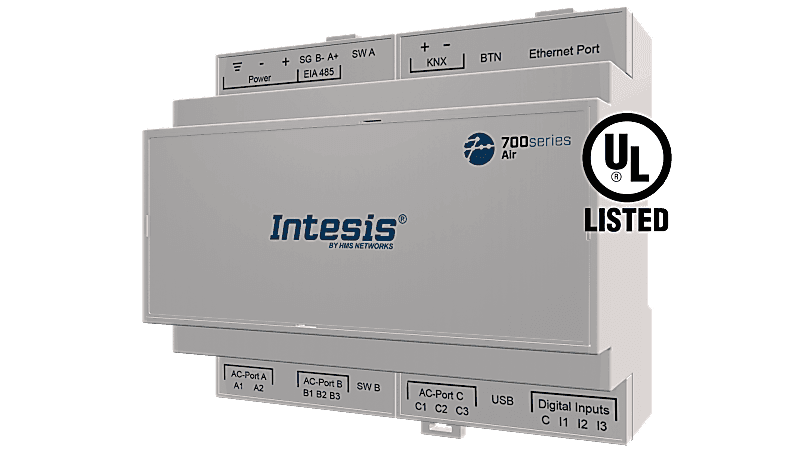

IN775FGL00SO000 HMS Networks Industrial Automation Components

Product Details

• Dual Usage (ERP)
  No
• Country of Origin
  Spain
• CB
  Yes
• Packaging Material
  Cardboard
• Installation Conditions
  This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting
• Net Depth (ERP) (mm)
  90 mm
• Export Control Classification Number (ECCN) (ERP)
  EAR99
• HS Code
  8517620000
• Push Buttons
  Factory reset. I-Am message (for BACnet only). Normal mode/programming mode switch (for KNX only).
• Contains Battery
  No
• LED Indicators
  Gateway and communication status.
• Connectors / Input / Output
  Power supply, EIA-485, KNX, Ethernet, HVAC port, Binary inputs (dry contact), Console port USB.
• DIP & Rotary Switches
  EIA-485 serial port configuration.
• ETIM Classification
  EC001604
• UKPSTI
  Yes
• UKCA
  Yes
• CE
  Yes
• WEEE Category
  IT and telecommunications equipment
• Capacity
  Up to 16 indoor units and up to 12 outdoor units.
• UL
  Yes
Housing Materials
Plastic
Warranty (years)
3 years
Operating Temperature °C Max
60 °C
Power Connector
3-pole
Mounting
DIN rail mount (bracket included), Wall mount
Operating Temperature °C Min
0 °C
Net Height (ERP) (mm)
58 mm
Content of Delivery
Intesis Gateway, Installation Manual, USB Configuration cable.
Not Included (in delivery)
Power supply not included.
Net Weight (ERP) (g)
375 g
Net Width (ERP) (mm)
106 mm
Input Voltage (V)
For DC: 12 .. 36 VDC ±10%, Max: 250 mA For AC: 24 VAC ±10 %, 50-60 Hz, Max: 127 mA Recommended voltage: 24 VDC, Max: 127 mA
