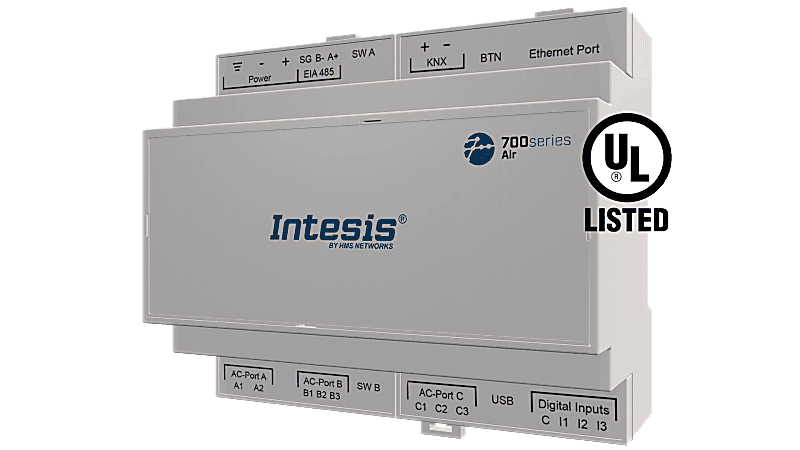

IN776MHI00MO000 HMS Networks Industrial Automation Components

Product Details

• Export Control Classification Number (ECCN) (ERP)
  EAR99
• Connectors / Input / Output
  Power supply, EIA-485, KNX, Ethernet, HVAC port, Binary inputs (dry contact), Console port USB.
• Net Height (ERP) (mm)
  58 mm
• Packaging Material
  Cardboard
• Country of Origin
  Spain
• ETIM Classification
  EC001604
• HS Code
  8517620000
• Dual Usage (ERP)
  No
• LED Indicators
  Gateway and communication status.
• Contains Battery
  No
• Push Buttons
  Factory reset. I-Am message (for BACnet only). Normal mode/programming mode switch (for KNX only).
• DIP & Rotary Switches
  EIA-485 serial port configuration.
• WEEE Category
  IT and telecommunications equipment
• BTL
  Yes
• UKPSTI
  Yes
• UKCA
  Yes
• CB
  Yes
• Housing Materials
  Plastic
• Capacity
  Up to 64 indoor units and up to 12 outdoor units.
• CE
  Yes
UL
Yes
Warranty (years)
3 years
Installation Conditions
This gateway is designed to be mounted inside an enclosure. If the unit is mounted outside an enclosure, precautions should always be taken to prevent electrostatic discharge to the unit. When working inside an enclosure (e.g., making adjustments, setting
Operating Temperature °C Max
60 °C
Operating Temperature °C Min
0 °C
Input Voltage (V)
For DC: 12 .. 36 VDC ±10%, Max: 250 mA For AC: 24 VAC ±10 %, 50-60 Hz, Max: 127 mA Recommended voltage: 24 VDC, Max: 127 mA
Power Connector
3-pole
Net Width (ERP) (mm)
106 mm
Mounting
DIN rail mount (bracket included), Wall mount
Net Weight (ERP) (g)
240 g
Net Depth (ERP) (mm)
90 mm
Not Included (in delivery)
Power supply not included.
Content of Delivery
Intesis Gateway, Installation Manual, USB Configuration cable.
