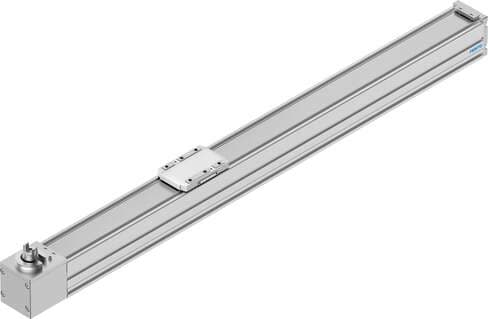

8062771 Festo Electric Actuators

Product Details

• Stroke reserve
  0 mm
• Size
  45
• Motor type
  Stepper motor Servo motor
• Repetition accuracy
  ±0.1 mm
• Ambient temperature
  0 °C ... 50 °C
• Max. torque My
  4.7 Nm
• Mass moment of inertia JL per kg of payload
  0.9119 kgcm²
• Moving mass at 0 mm stroke
  169 g
• Product weight
  2135 g
• Drive cover material
  Die cast aluminum, painted
• Drive pinion effective diameter
  19.1 mm
• Working stroke
  600 mm
• Type code
  ELGC
• Guide
  Recirculating ball bearing guide
• Max. force Fz
  600 N
• Max. torque Mz
  4.7 Nm
• No-load driving torque
  0.075 Nm
• Mass moment of inertia JO
  0.1862 kgcm²
• Additional weight per 10 mm stroke
  23 g
• Interface code, actuator
  V32
Slide material
Die-cast aluminum
Toothed belt pitch
2 mm
Symbol
00991212
Max. acceleration
15 m/s²
Max. driving torque
0.716 Nm
Max. torque Mx
5.5 Nm
Max. feed force Fx
75 N
Material of end caps
Die cast aluminum, painted
Profile material
Wrought aluminum alloy, anodized
Toothed belt material
Polychloroprene with glass fiber
Toothed belt elongation
0.187 %
Mounting position
Any
Max. speed
1.2 m/s
Duty cycle
100%
2nd moment of area Iz
170000 mm⁴
Max. no-load resistance to shifting
7.8 N
Mass moment of inertia JH per meter of stroke
0.0281 kgcm²
Feed constant
60 mm/U
Basic weight with 0 mm stroke
760 g
Cover strip material
Stainless steel strip
Slide carriage material
Tempered steel
Design
Electromechanical linear axis with toothed belt
Measuring principle of linear potentiometer
Incremental
Degree of protection
IP40
2nd moment of area Iy
140000 mm⁴
Max. force Fy
300 N
Torsion moment of inertia It
8500 mm⁴
Moving mass
169 g
Slide weight
55 g
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Guide rail material
Tempered steel
Belt pulley material
High-alloy stainless steel

Related documents 8062771 Specs
