8062876 Festo Electric Actuators

8062876 on Powermatic Associates
Festo

Part#:8062876

Alt. Part#:ELFC-KF-32-800

Manufacturer:Festo

Category:Electric Actuators

Product Lifecycle:Active

Product description

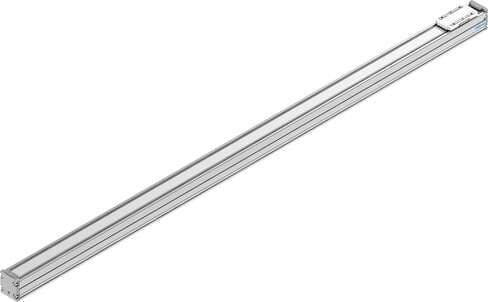

guide axis ELFC-KF-32-800 Working stroke: 800 mm, Size: 32, Stroke reserve: 0 mm, Assembly position: Any, Guide: Recirculating ball bearing guide

Product Details

  • Mx with theoretical service life of 100 km (from a guide perspective only)
    5 Nm
  • Working stroke
    800 mm
  • Fz with theoretical service life of 100 km (from a guide perspective only)
    1104 N
  • Mounting position
    Any
  • Duty cycle
    100%
  • Ambient temperature
    0 °C ... 50 °C
  • Max. torque Mz
    1.1 Nm
  • Moving mass
    61 g
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Guide rail material
    Steel
  • Mz with theoretical service life of 100 km (from a guide perspective only)
    4 Nm
  • Size
    32
  • Type code
    ELFC
  • Guide
    Recirculating ball bearing guide
  • Max. speed
    1.5 m/s
  • 2nd moment of area Iz
    45000 mm⁴
  • Max. force Fz
    300 N
  • Cover strip material
    High-alloy stainless steel
  • Max. acceleration
    250 m/s²
  • 2nd moment of area Iy
    38000 mm⁴
  • Max. torque My
    1.1 Nm
  • Displacement force
    2 N
  • Profile material
    Wrought aluminum alloy, anodized
  • Slide carriage material
    Steel
  • Fy with theoretical service life of 100 km (from a guide perspective only)
    552 N
  • Symbol
    00992984
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Max. torque Mx
    1.3 Nm
  • Torsion moment of inertia It
    1770 mm⁴
  • Material of end caps
    Die cast aluminum, painted
  • Cover material
    Die cast aluminum, painted
  • My with theoretical service life of 100 km (from a guide perspective only)
    4 Nm
  • Stroke reserve
    0 mm
  • Design
    Guide
  • Degree of protection
    IP40
  • Max. force Fy
    150 N
  • Additional weight per 10 mm stroke
    11 g
  • Slide material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
