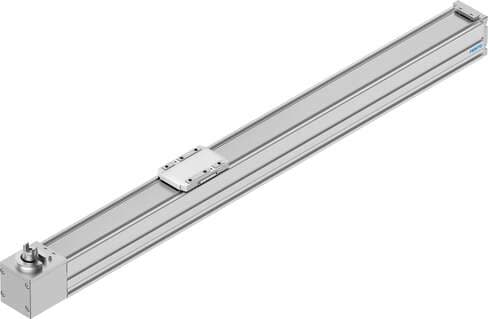

8062774 Festo Electric Actuators

Product Details

• Stroke reserve
  0 mm
• Design
  Electromechanical linear axis with toothed belt
• Measuring principle of linear potentiometer
  Incremental
• Duty cycle
  100%
• Ambient temperature
  0 °C ... 50 °C
• Max. force Fy
  300 N
• Max. torque Mz
  4.7 Nm
• Mass moment of inertia JL per kg of payload
  0.9119 kgcm²
• Moving mass at 0 mm stroke
  169 g
• Product weight
  3510 g
• Cover strip material
  Stainless steel strip
• Slide material
  Die-cast aluminum
• Toothed belt pitch
  2 mm
• Motor type
  Stepper motor Servo motor
• 2nd moment of area Iz
  170000 mm⁴
• Max. torque Mx
  5.5 Nm
• Max. force Fz
  600 N
• Feed constant
  60 mm/U
• Basic weight with 0 mm stroke
  760 g
• Profile material
  Wrought aluminum alloy, anodized
Toothed belt material
Polychloroprene with glass fiber
Working stroke
1200 mm
Type code
ELGC
Guide
Recirculating ball bearing guide
Max. speed
1.2 m/s
2nd moment of area Iy
140000 mm⁴
Max. no-load resistance to shifting
7.8 N
No-load driving torque
0.075 Nm
Max. feed force Fx
75 N
Additional weight per 10 mm stroke
23 g
Drive cover material
Die cast aluminum, painted
Drive pinion effective diameter
19.1 mm
Toothed belt elongation
0.187 %
Max. acceleration
15 m/s²
Degree of protection
IP40
Max. driving torque
0.716 Nm
Max. torque My
4.7 Nm
Torsion moment of inertia It
8500 mm⁴
Mass moment of inertia JO
0.1862 kgcm²
Slide weight
55 g
Material of end caps
Die cast aluminum, painted
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Guide rail material
Tempered steel
Size
45
Mounting position
Any
Symbol
00991212
Repetition accuracy
±0.1 mm
Mass moment of inertia JH per meter of stroke
0.0281 kgcm²
Moving mass
169 g
Interface code, actuator
V32
Slide carriage material
Tempered steel
Belt pulley material
High-alloy stainless steel
