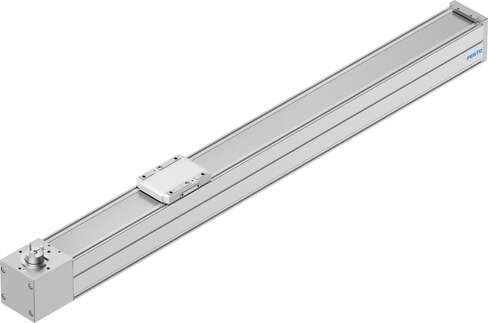

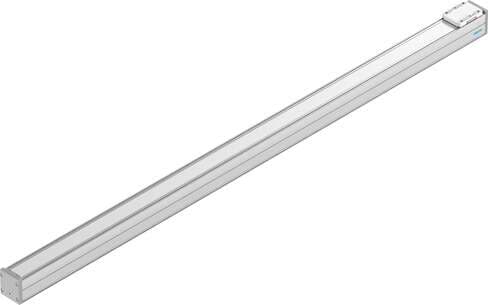

8062794 Festo Electric Actuators

Product Details

• Working stroke
  1800 mm
• Toothed belt pitch
  3 mm
• Design
  Electromechanical linear axis with toothed belt
• Max. speed
  1.5 m/s
• Duty cycle
  100%
• Max. force Fy
  900 N
• Max. torque My
  56.2 Nm
• Mass moment of inertia JH per meter of stroke
  0.1927 kgcm²
• Mass moment of inertia JL per kg of payload
  2.793 kgcm²
• Basic weight with 0 mm stroke
  3500 g
• Interface code, actuator
  T46
• Slide carriage material
  Tempered steel
• Size
  80
• Type code
  ELGC
• Motor type
  Stepper motor Servo motor
• Repetition accuracy
  ±0.1 mm
• Degree of protection
  IP40
• Max. driving torque
  4.178 Nm
• Drive pinion effective diameter
  33.42 mm
• Toothed belt elongation
  0.2 %
Mounting position
Any
Measuring principle of linear potentiometer
Incremental
2nd moment of area Iy
1370000 mm⁴
Max. no-load resistance to shifting
24.7 N
No-load driving torque
0.413 Nm
Mass moment of inertia JO
2.912 kgcm²
Slide weight
272 g
Profile material
Wrought aluminum alloy, anodized
Cover strip material
Stainless steel strip
Guide
Recirculating ball bearing guide
Max. acceleration
15 m/s²
Ambient temperature
0 °C ... 50 °C
Max. force Fz
2700 N
Max. torque Mz
56.2 Nm
Max. feed force Fx
250 N
Moving mass at 0 mm stroke
901 g
Stroke reserve
0 mm
Symbol
00991212
2nd moment of area Iz
1660000 mm⁴
Max. torque Mx
59.8 Nm
Moving mass
901 g
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Torsion moment of inertia It
90500 mm⁴
Feed constant
105 mm/U
Additional weight per 10 mm stroke
73 g
Drive cover material
Die cast aluminum, painted
Belt pulley material
High-alloy stainless steel
Material of end caps
Die cast aluminum, painted
Product weight
16611 g
Guide rail material
Tempered steel
Toothed belt material
Polychloroprene with glass fiber
Slide material
Die-cast aluminum

Related documents 8062794 Specs
