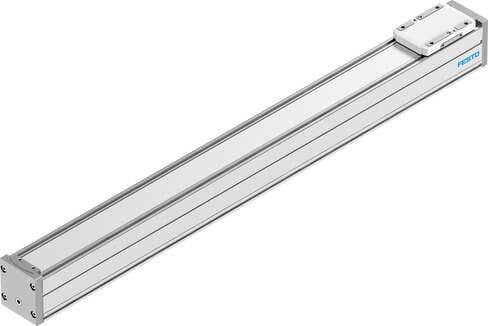

8062817 Festo Electric Actuators

Product Details

• Type code
  ELFC
• My with theoretical service life of 100 km (from a guide perspective only)
  117 Nm
• Mounting position
  Any
• Design
  Guide
• Duty cycle
  100%
• 2nd moment of area Iz
  542000 mm⁴
• Torsion moment of inertia It
  29800 mm⁴
• Additional weight per 10 mm stroke
  43 g
• Cover strip material
  High-alloy stainless steel
• Slide material
  Die-cast aluminum
• Mx with theoretical service life of 100 km (from a guide perspective only)
  107 Nm
• Size
  60
• Guide
  Recirculating ball bearing guide
• Max. speed
  1.5 m/s
• 2nd moment of area Iy
  441000 mm⁴
• Max. torque Mx
  29.1 Nm
• Displacement force
  6.75 N
• Profile material
  Wrought aluminum alloy, anodized
• Mz with theoretical service life of 100 km (from a guide perspective only)
  117 Nm
• Stroke reserve
  0 mm
Symbol
00992984
Degree of protection
IP40
Max. torque My
31.8 Nm
Material of end caps
Die cast aluminum, painted
Guide rail material
Steel
Fy with theoretical service life of 100 km (from a guide perspective only)
2208 N
Fz with theoretical service life of 100 km (from a guide perspective only)
6624 N
Working stroke
600 mm
Max. acceleration
500 m/s²
Ambient temperature
0 °C ... 50 °C
Max. force Fz
1800 N
Max. torque Mz
31.8 Nm
Slide carriage material
Steel
Corrosion resistance class (CRC)
0 - No corrosion stress
Max. force Fy
600 N
Moving mass
407 g
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Cover material
Die cast aluminum, painted
