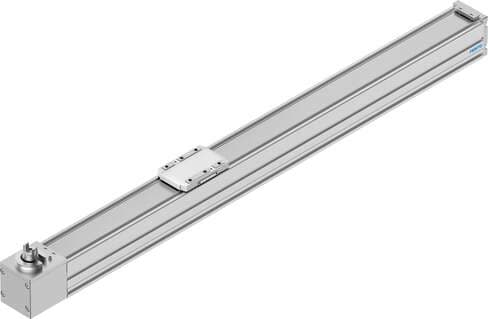

8062773 Festo Electric Actuators

Product Details

• Drive pinion effective diameter
  19.1 mm
• Repetition accuracy
  ±0.1 mm
• Type code
  ELGC
• Design
  Electromechanical linear axis with toothed belt
• Max. speed
  1.2 m/s
• 2nd moment of area Iz
  170000 mm⁴
• Max. force Fy
  300 N
• Max. torque My
  4.7 Nm
• Torsion moment of inertia It
  8500 mm⁴
• Working stroke
  1000 mm
• Toothed belt elongation
  0.187 %
• Guide
  Recirculating ball bearing guide
• Symbol
  00991212
• Max. acceleration
  15 m/s²
• Ambient temperature
  0 °C ... 50 °C
• Max. driving torque
  0.716 Nm
• Max. no-load resistance to shifting
  7.8 N
• No-load driving torque
  0.075 Nm
• Moving mass
  169 g
• Product weight
  3051 g
Stroke reserve
0 mm
Toothed belt pitch
2 mm
Motor type
Stepper motor Servo motor
Duty cycle
100%
Degree of protection
IP40
Max. torque Mz
4.7 Nm
Mass moment of inertia JL per kg of payload
0.9119 kgcm²
Feed constant
60 mm/U
Material of end caps
Die cast aluminum, painted
Toothed belt material
Polychloroprene with glass fiber
Size
45
Mounting position
Any
Measuring principle of linear potentiometer
Incremental
2nd moment of area Iy
140000 mm⁴
Max. force Fz
600 N
Max. torque Mx
5.5 Nm
Mass moment of inertia JH per meter of stroke
0.0281 kgcm²
Max. feed force Fx
75 N
Mass moment of inertia JO
0.1862 kgcm²
Additional weight per 10 mm stroke
23 g
Basic weight with 0 mm stroke
760 g
Cover strip material
Stainless steel strip
Slide carriage material
Tempered steel
Moving mass at 0 mm stroke
169 g
Interface code, actuator
V32
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Guide rail material
Tempered steel
Slide weight
55 g
Drive cover material
Die cast aluminum, painted
Slide material
Die-cast aluminum
Profile material
Wrought aluminum alloy, anodized
Belt pulley material
High-alloy stainless steel
