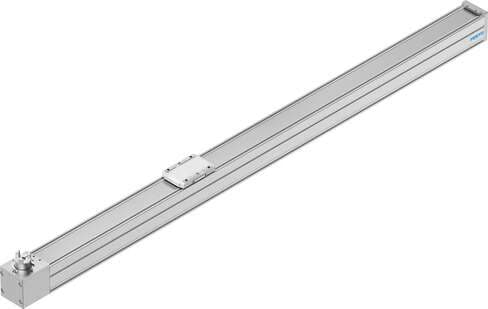

8062781 Festo Electric Actuators

Product Details

• Size
  60
• Type code
  ELGC
• Motor type
  Stepper motor Servo motor
• Max. speed
  1.5 m/s
• Working stroke
  1000 mm
• Toothed belt pitch
  3 mm
• Design
  Electromechanical linear axis with toothed belt
• Measuring principle of linear potentiometer
  Incremental
• Repetition accuracy
  ±0.1 mm
• 2nd moment of area Iz
  542000 mm⁴
• Max. force Fz
  1800 N
• Mass moment of inertia JH per meter of stroke
  0.0851 kgcm²
• Moving mass
  482 g
• Product weight
  6027 g
• Drive pinion effective diameter
  24.83 mm
• Toothed belt elongation
  0.124 %
• Guide
  Recirculating ball bearing guide
• Symbol
  00991212
• Duty cycle
  100%
• Max. driving torque
  1.49 Nm
Max. torque Mx
29.1 Nm
Max. torque Mz
31.8 Nm
Mass moment of inertia JO
0.8804 kgcm²
Slide weight
139 g
Material of end caps
Die cast aluminum, painted
Drive cover material
Die cast aluminum, painted
Slide material
Die-cast aluminum
Degree of protection
IP40
Ambient temperature
0 °C ... 50 °C
Max. feed force Fx
120 N
Max. torque My
31.8 Nm
Feed constant
78 mm/U
Additional weight per 10 mm stroke
43 g
Profile material
Wrought aluminum alloy, anodized
Slide carriage material
Tempered steel
Toothed belt material
Polychloroprene with glass fiber
Stroke reserve
0 mm
Mounting position
Any
Max. acceleration
15 m/s²
Max. force Fy
600 N
No-load driving torque
0.194 Nm
Mass moment of inertia JL per kg of payload
1.5411 kgcm²
Basic weight with 0 mm stroke
1775 g
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Guide rail material
Tempered steel
2nd moment of area Iy
441000 mm⁴
Max. no-load resistance to shifting
15.6 N
Torsion moment of inertia It
29800 mm⁴
Moving mass at 0 mm stroke
482 g
Interface code, actuator
T42
Cover strip material
Stainless steel strip
Belt pulley material
High-alloy stainless steel

Related documents 8062781 Specs
