8062810 Festo Electric Actuators

8062810 on Powermatic Associates
Festo

Part#:8062810

Alt. Part#:ELFC-KF-45-1200

Manufacturer:Festo

Category:Electric Actuators

Product Lifecycle:Active

Product description

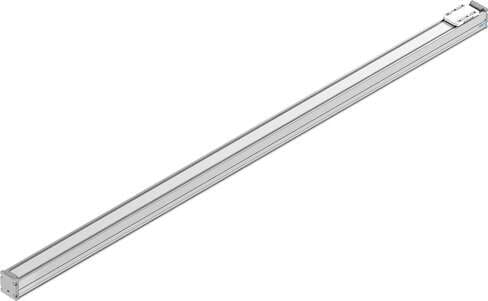

guide axis ELFC-KF-45-1200 Working stroke: 1200 mm, Size: 45, Stroke reserve: 0 mm, Assembly position: Any, Guide: Recirculating ball bearing guide

Product Details

  • Max. acceleration
    250 m/s²
  • Working stroke
    1200 mm
  • Design
    Guide
  • Type code
    ELFC
  • Mx with theoretical service life of 100 km (from a guide perspective only)
    20 Nm
  • Mounting position
    Any
  • Ambient temperature
    0 °C ... 50 °C
  • Max. torque Mz
    4.7 Nm
  • My with theoretical service life of 100 km (from a guide perspective only)
    17 Nm
  • Size
    45
  • Max. speed
    1.5 m/s
  • 2nd moment of area Iy
    140000 mm⁴
  • Max. torque My
    4.7 Nm
  • Max. force Fz
    600 N
  • Profile material
    Wrought aluminum alloy, anodized
  • Slide carriage material
    Steel
  • Mz with theoretical service life of 100 km (from a guide perspective only)
    17 Nm
  • Stroke reserve
    0 mm
  • Duty cycle
    100%
  • 2nd moment of area Iz
    170000 mm⁴
  • Moving mass
    144 g
  • Additional weight per 10 mm stroke
    23 g
  • Slide material
    Die-cast aluminum
  • Fy with theoretical service life of 100 km (from a guide perspective only)
    1104 N
  • Fz with theoretical service life of 100 km (from a guide perspective only)
    2208 N
  • Guide
    Recirculating ball bearing guide
  • Symbol
    00992984
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Max. force Fy
    300 N
  • Torsion moment of inertia It
    8500 mm⁴
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Cover material
    Die cast aluminum, painted
  • Degree of protection
    IP40
  • Max. torque Mx
    5.5 Nm
  • Displacement force
    4.5 N
  • Material of end caps
    Die cast aluminum, painted
  • Guide rail material
    Steel
  • Cover strip material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
